2-640456-6
- 型號描述:
-

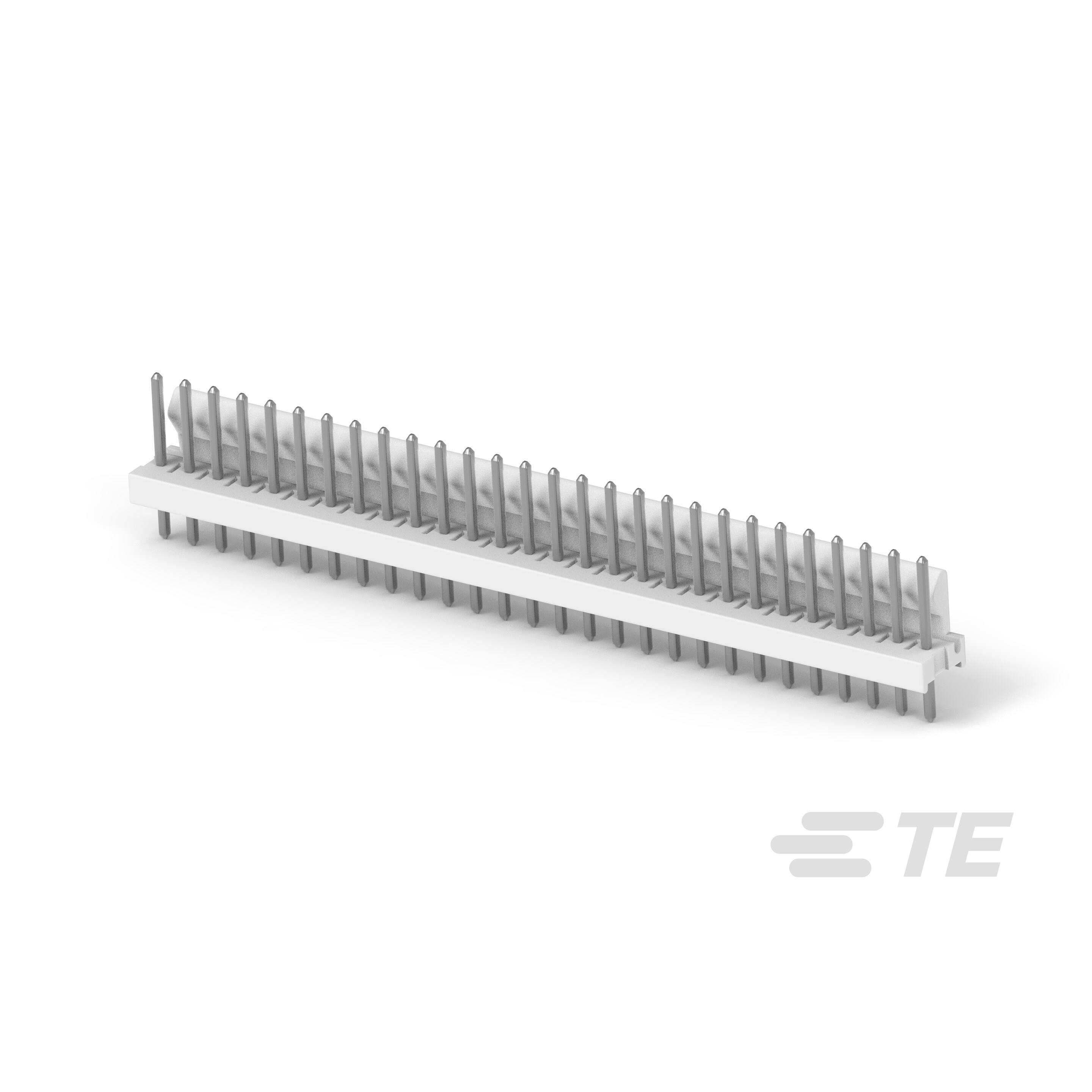

Connector Header Through Hole 26 position 0.100" (2.54mm)
CONN HEADER VERT 26POS 2.54MM
- 型號:
- 2-640456-6
- 品牌:
- TE Connectivity AMP Connectors
- 交期:
- 5-8工作天
- 原廠包裝量:
- Connector Type
- Header
- Contact Type
- Male Pin
- Pitch - Mating
- 0.100" (2.54mm)
- Number of Positions
- 26
- Number of Rows
- 1
- Row Spacing - Mating
- -
- Number of Positions Loaded
- All
- Style
- Board to Cable/Wire
- Shrouding
- Shrouded - 1 Wall
- Mounting Type
- Through Hole
- Termination
- Solder
- Fastening Type
- Friction Lock
- Contact Length - Mating
- 0.295" (7.49mm)
- Contact Length - Post
- 0.140" (3.56mm)
- Overall Contact Length
- 0.535" (13.59mm)
- Insulation Height
- 0.305" (7.75mm)
- Contact Shape
- Square
- Contact Finish - Mating
- Tin
- Contact Finish Thickness - Mating
- -
- Contact Finish - Post
- Tin
- Contact Material
- Copper Alloy
- Insulation Material
- Thermoplastic
- Features
- -
- Operating Temperature
- -55°C ~ 105°C
- Ingress Protection
- -
- Material Flammability Rating
- UL94 V-0
- Insulation Color
- Natural
- Current Rating (Amps)
- Varies by Wire Gauge
- Voltage Rating
- 250VAC
