1-1318382-8
- 型號描述:
-

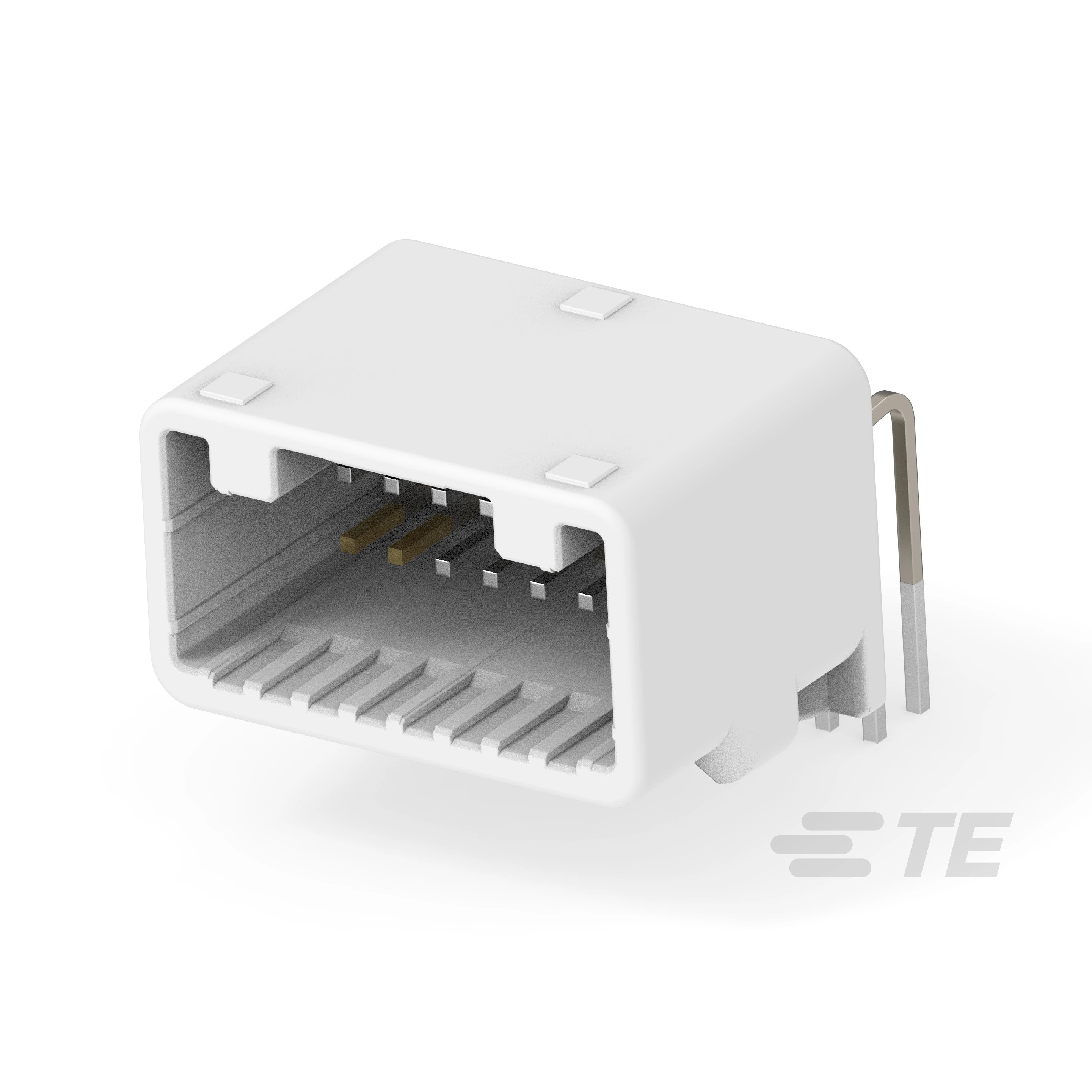

Connector Header Through Hole, Right Angle 16 position 0.087" (2.20mm)
025 16POS CAP ASSY H 4 AU
- 型號:
- 1-1318382-8
- 品牌:
- TE Connectivity AMP Connectors
- 交期:
- 5-8工作天
- 原廠包裝量:
- Connector Type
- Header
- Contact Type
- Male Pin
- Pitch - Mating
- 0.087" (2.20mm)
- Number of Positions
- 16
- Number of Rows
- 2
- Row Spacing - Mating
- 0.118" (3.00mm)
- Number of Positions Loaded
- All
- Style
- Board to Cable/Wire
- Shrouding
- Shrouded - 4 Wall
- Mounting Type
- Through Hole, Right Angle
- Termination
- Solder
- Fastening Type
- Push-Pull
- Contact Length - Mating
- 0.217" (5.50mm)
- Contact Length - Post
- -
- Overall Contact Length
- -
- Insulation Height
- 0.610" (15.49mm)
- Contact Shape
- Square
- Contact Finish - Mating
- Gold
- Contact Finish Thickness - Mating
- -
- Contact Finish - Post
- Gold
- Contact Material
- Brass
- Insulation Material
- Polybutylene Terephthalate (PBT), Glass Filled
- Features
- Mounting Flange
- Operating Temperature
- -30°C ~ 105°C
- Ingress Protection
- -
- Material Flammability Rating
- -
- Insulation Color
- Natural
- Current Rating (Amps)
- -
- Voltage Rating
- 12VDC
