5031751502
- 型號描述:
-

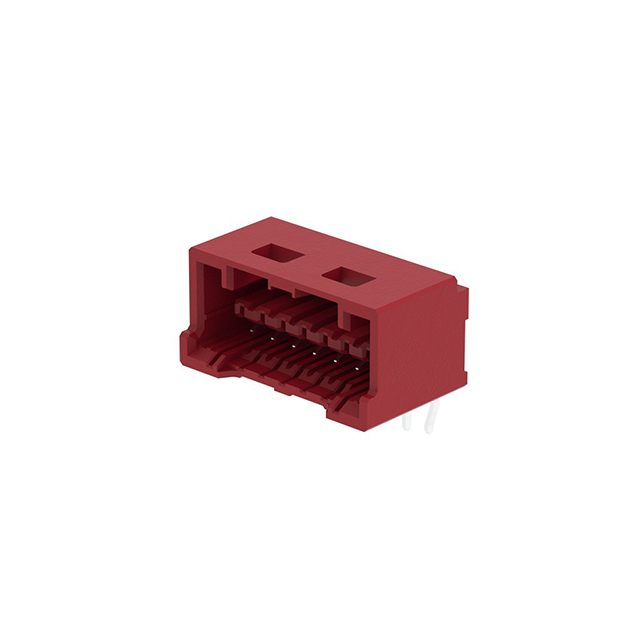

15 Position Receptacle Connector 0.059" (1.50mm) Through Hole, Right Angle Tin
1.5 W/B SGLDIPR/ARECASSY15CKTW/B
- 型號:
- 5031751502
- 品牌:
- Molex
- 交期:
- 5-8工作天
- 原廠包裝量:
- Connector Type
- Receptacle
- Contact Type
- Forked
- Style
- Board to Cable/Wire
- Number of Positions
- 15
- Number of Positions Loaded
- All
- Pitch - Mating
- 0.059" (1.50mm)
- Number of Rows
- 1
- Row Spacing - Mating
- -
- Mounting Type
- Through Hole, Right Angle
- Termination
- Kinked Pin, Solder
- Fastening Type
- Detent Lock
- Contact Finish - Mating
- Tin
- Contact Finish Thickness - Mating
- 39.4µin (1.00µm)
- Insulation Color
- Red
- Insulation Height
- 0.274" (6.95mm)
- Contact Length - Post
- 0.134" (3.40mm)
- Operating Temperature
- -40°C ~ 105°C
- Material Flammability Rating
- UL94 V-0
- Contact Finish - Post
- Tin
- Mated Stacking Heights
- -
- Ingress Protection
- -
- Features
- Board Guide
- Current Rating (Amps)
- Varies by Wire Gauge
- Voltage Rating
- 100VAC/DC
