0559172030
- 型號描述:
-

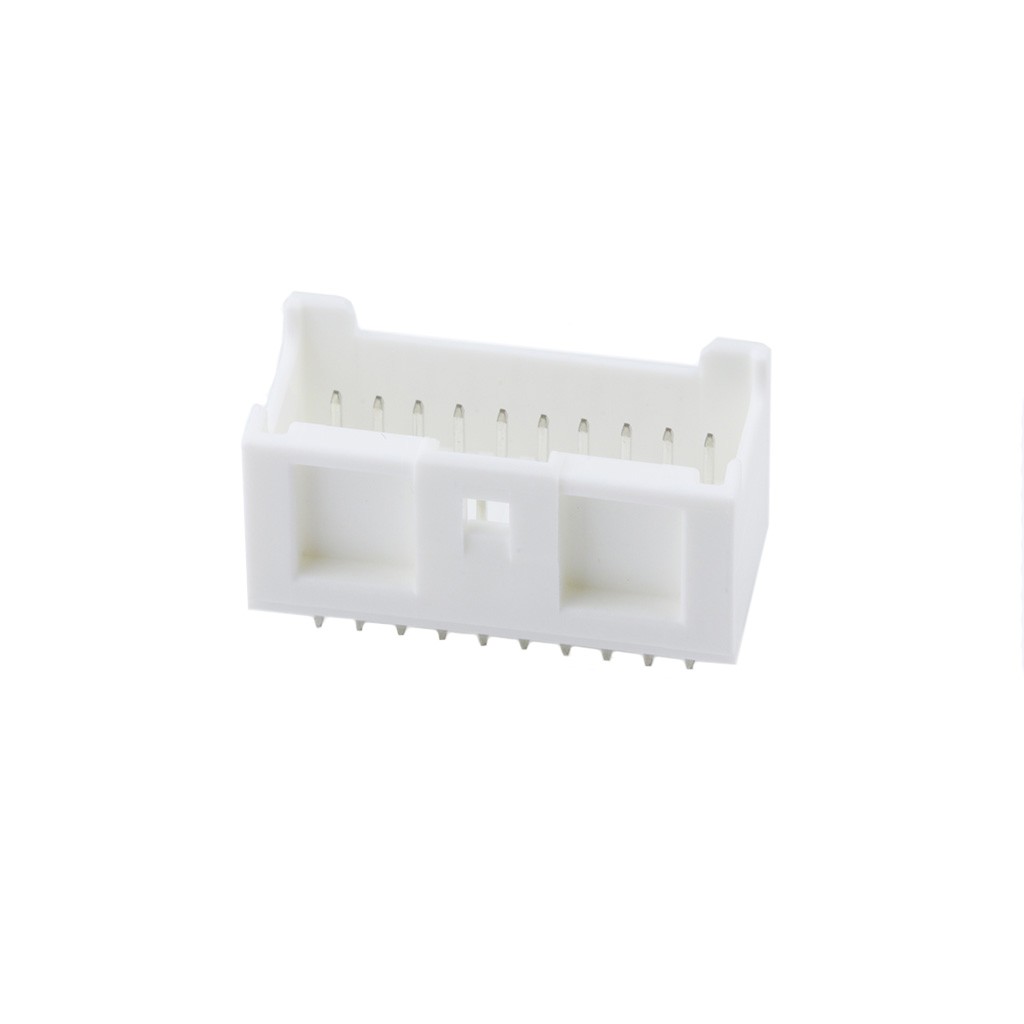

Connector Header Through Hole 20 position 0.079" (2.00mm)
2.0 WTB DUAL CONN DIP PLG HSG AS
- 型號:
- 0559172030
- 品牌:
- Molex
- 交期:
- 5-8工作天
- 原廠包裝量:
- Connector Type
- Header
- Contact Type
- Male Pin
- Pitch - Mating
- 0.079" (2.00mm)
- Number of Positions
- 20
- Number of Rows
- 2
- Row Spacing - Mating
- 0.197" (5.00mm)
- Number of Positions Loaded
- All
- Style
- Board to Cable/Wire
- Shrouding
- Shrouded - 4 Wall
- Mounting Type
- Through Hole
- Termination
- Kinked Pin, Solder
- Fastening Type
- Latch Holder
- Contact Length - Mating
- 0.150" (3.81mm)
- Contact Length - Post
- 0.126" (3.20mm)
- Overall Contact Length
- 0.366" (9.30mm)
- Insulation Height
- 0.364" (9.25mm)
- Contact Shape
- Square
- Contact Finish - Mating
- Tin
- Contact Finish Thickness - Mating
- -
- Contact Finish - Post
- Tin
- Contact Material
- Brass
- Insulation Material
- Polybutylene Terephthalate (PBT), Glass Filled
- Features
- Board Guide
- Operating Temperature
- -
- Ingress Protection
- -
- Material Flammability Rating
- UL94 V-0
- Insulation Color
- Natural
- Current Rating (Amps)
- -
- Voltage Rating
- -
