BHR-30-HUA-ML
- 型號描述:
-

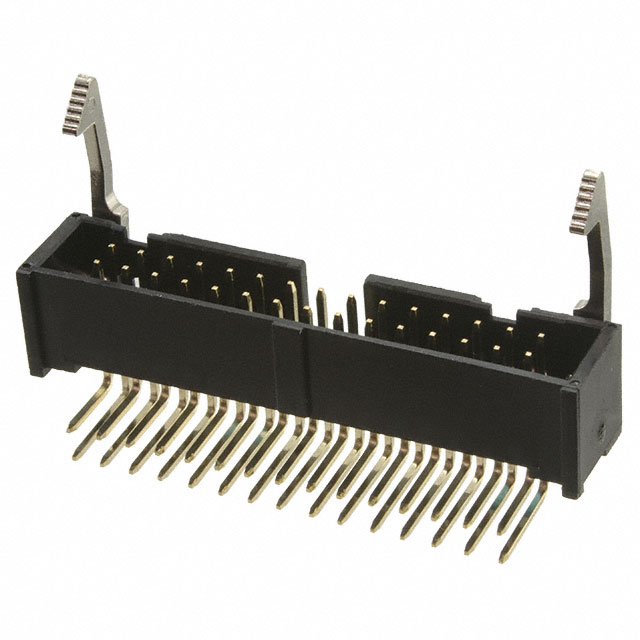

Connector Header Through Hole, Right Angle 30 position 0.100" (2.54mm)
CONN HEADER R/A 30POS 2.54MM
- 型號:
- BHR-30-HUA-ML
- 品牌:
- Adam Tech
- 交期:
- 5-8工作天
- 原廠包裝量:
- 幣別 (NTD)稅前單價/PCS
- 點擊查看即時庫存
| 1+ | NT$132.5331 |
| 54+ | NT$99.8894 |
| 108+ | NT$95.1207 |
| 540+ | NT$84.9084 |
| 1026+ | NT$81.1518 |
起訂量：1
倍增量：1
價格:
NT$132.5331
數量:
合計: NT$133
- Connector Type
- Header
- Contact Type
- Male Pin
- Pitch - Mating
- 0.100" (2.54mm)
- Number of Positions
- 30
- Number of Rows
- 2
- Row Spacing - Mating
- 0.100" (2.54mm)
- Number of Positions Loaded
- All
- Style
- Board to Board or Cable
- Shrouding
- Shrouded - 4 Wall
- Mounting Type
- Through Hole, Right Angle
- Termination
- Solder
- Fastening Type
- Latch Lock/Eject Hooks, Long
- Contact Length - Mating
- -
- Contact Length - Post
- 0.126" (3.20mm)
- Overall Contact Length
- -
- Insulation Height
- 0.354" (9.00mm)
- Contact Shape
- Square
- Contact Finish - Mating
- Gold
- Contact Finish Thickness - Mating
- Flash
- Contact Finish - Post
- Gold
- Contact Material
- Brass
- Insulation Material
- Polybutylene Terephthalate (PBT), Glass Filled
- Features
- Keying Slot
- Operating Temperature
- -40°C ~ 105°C
- Ingress Protection
- -
- Material Flammability Rating
- UL94 V-0
- Insulation Color
- Black
- Current Rating (Amps)
- 3A
- Voltage Rating
- 350VAC
