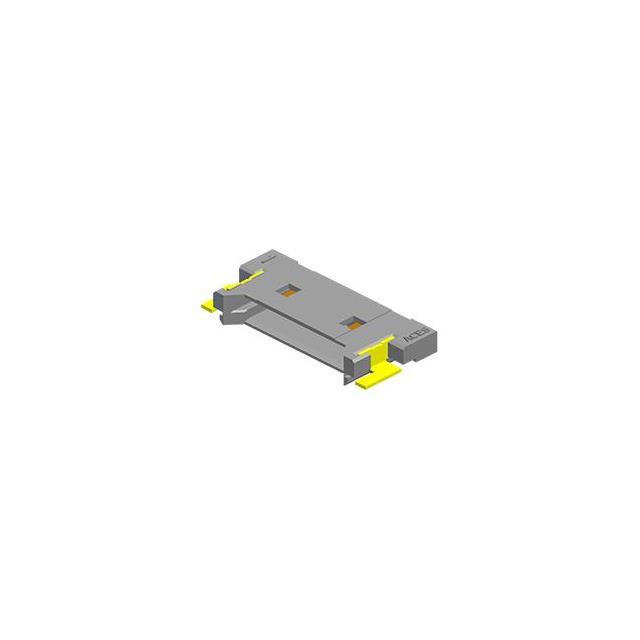

50277-01001-001
- 型號描述:
-
Connector Header Surface Mount, Right Angle 10 position 0.049" (1.25mm)
10 POS 1.25 MM PITCH WTB WAFER C
- 型號:
- 50277-01001-001
- 品牌:
- Aces Connectors
- 交期:
- 5-8工作天
- 原廠包裝量:
- Connector Type
- Header
- Contact Type
- Male Pin
- Pitch - Mating
- 0.049" (1.25mm)
- Number of Positions
- 10
- Number of Rows
- 1
- Row Spacing - Mating
- -
- Number of Positions Loaded
- All
- Style
- Board to Cable/Wire
- Shrouding
- Shrouded - 4 Wall
- Mounting Type
- Surface Mount, Right Angle
- Termination
- Solder
- Fastening Type
- Detent Lock
- Contact Length - Mating
- 0.102" (2.60mm)
- Contact Length - Post
- -
- Overall Contact Length
- -
- Insulation Height
- 0.051" (1.30mm)
- Contact Shape
- Rectangular
- Contact Finish - Mating
- Gold
- Contact Finish Thickness - Mating
- 1.00µin (0.025µm)
- Contact Finish - Post
- Gold
- Contact Material
- Copper Alloy
- Insulation Material
- Plastic, Halogen Free
- Features
- Solder Retention
- Operating Temperature
- -40°C ~ 85°C
- Ingress Protection
- -
- Material Flammability Rating
- UL94 V-0
- Insulation Color
- Black
- Current Rating (Amps)
- 1.8A
- Voltage Rating
- 200VAC
