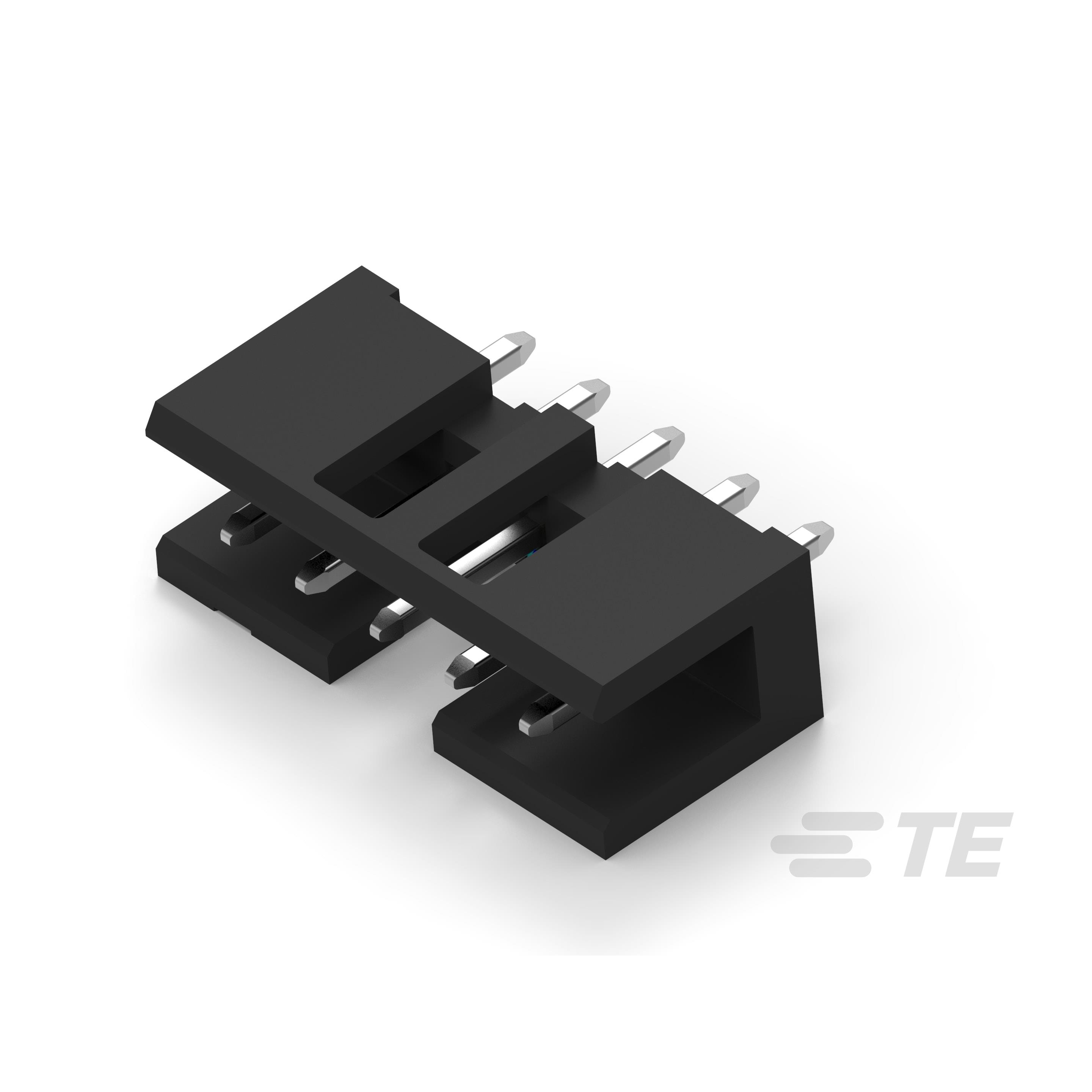

2MM-HSD-S04-VT-02-H-TB
- 型號描述:
-
Connector Header Through Hole 4 position 0.079" (2.00mm)
4P, AMPMODU 2 MM, SHROUDED HEADE
- 型號:
- 2MM-HSD-S04-VT-02-H-TB
- 品牌:
- TE Connectivity AMP Connectors
- 交期:
- 5-8工作天
- 原廠包裝量:
- 幣別 (NTD)稅前單價/PCS
- 點擊查看即時庫存
| 1+ | NT$40.3088 |
| 54+ | NT$30.4457 |
| 108+ | NT$28.9896 |
| 540+ | NT$25.8766 |
| 1026+ | NT$24.7308 |
| 5022+ | NT$23.2126 |
起訂量：1
倍增量：1
價格:
NT$40.3088
數量:
合計: NT$40
- Packaging
- Tube
- Features
- -
- Connector Type
- Header
- Voltage Rating
- 250VAC
- Current Rating (Amps)
- 2A
- Mounting Type
- Through Hole
- Number of Positions
- 4
- Number of Rows
- 1
- Style
- Board to Cable/Wire
- Operating Temperature
- -40°C ~ 105°C
- Contact Type
- Male Pin
- Fastening Type
- Push-Pull
- Number of Positions Loaded
- All
- Termination
- Solder
- Ingress Protection
- -
- Material Flammability Rating
- UL94 V-0
- Contact Material
- Phosphor Bronze
- Insulation Color
- Black
- Pitch - Mating
- 0.079" (2.00mm)
- Contact Finish - Mating
- Gold
- Contact Finish Thickness - Mating
- 30.0µin (0.76µm)
- Contact Finish - Post
- Tin
- Contact Shape
- Rectangular
- Contact Length - Post
- 0.110" (2.80mm)
- Insulation Height
- 0.217" (5.51mm)
- Shrouding
- Shrouded - 4 Wall
- Overall Contact Length
- -
- Insulation Material
- Thermoplastic
- Row Spacing - Mating
- -
- Contact Length - Mating
- 0.157" (4.00mm)
