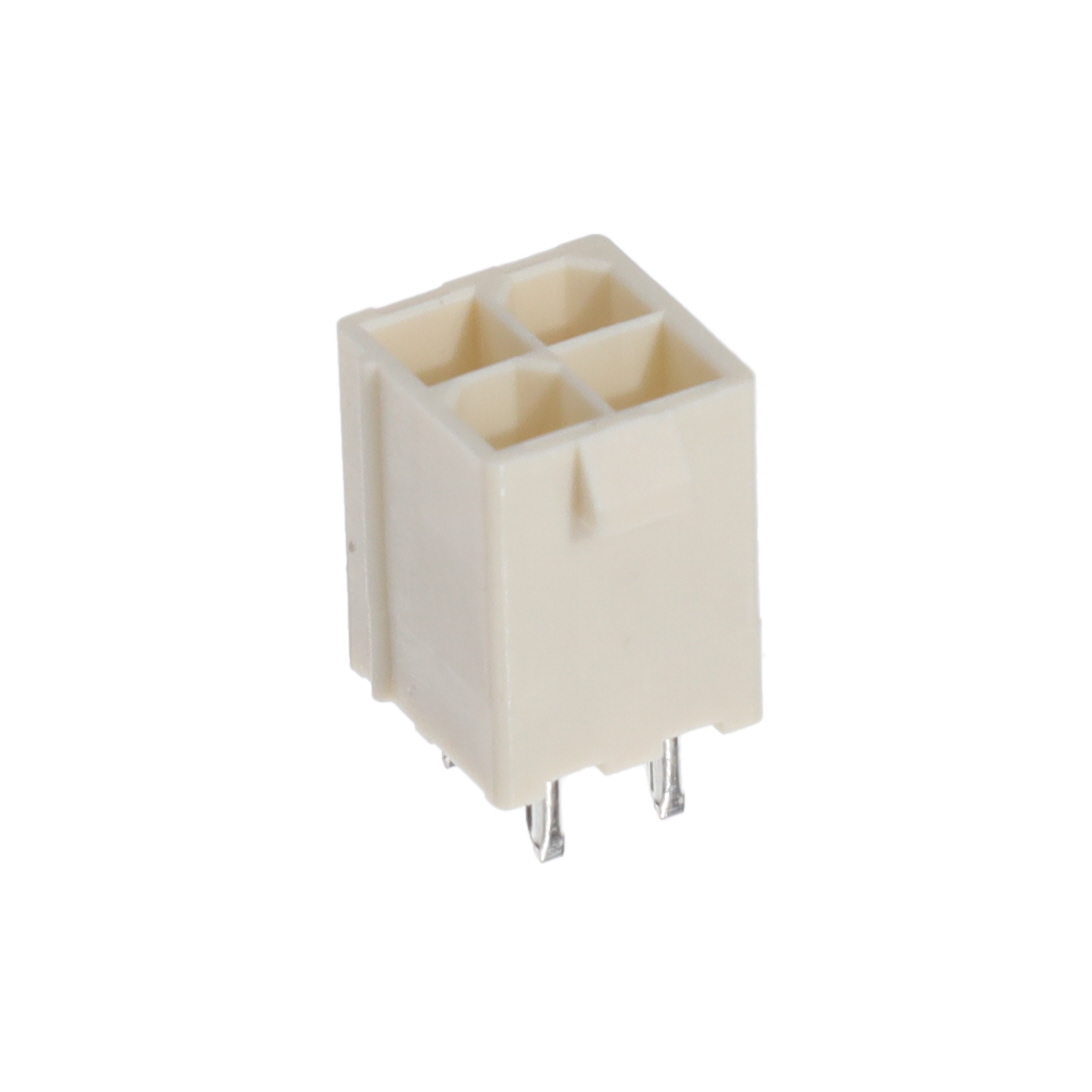

2467688-4
- 型號描述:
-
Connector Header Through Hole 4 position 0.165" (4.20mm)
4P VAL-U-LOK VRTHDR W/O PGS GW
- 型號:
- 2467688-4
- 品牌:
- TE Connectivity AMP Connectors
- 交期:
- 5-8工作天
- 原廠包裝量:
- Connector Type
- Header
- Contact Type
- Male Pin
- Pitch - Mating
- 0.165" (4.20mm)
- Number of Positions
- 4
- Number of Rows
- 2
- Row Spacing - Mating
- 0.165" (4.20mm)
- Number of Positions Loaded
- All
- Style
- Board to Cable/Wire
- Shrouding
- Shrouded - 4 Wall
- Mounting Type
- Through Hole
- Termination
- Solder
- Fastening Type
- Locking Ramp
- Contact Length - Mating
- -
- Contact Length - Post
- 0.138" (3.50mm)
- Overall Contact Length
- -
- Insulation Height
- 0.504" (12.80mm)
- Contact Shape
- Square
- Contact Finish - Mating
- Tin
- Contact Finish Thickness - Mating
- -
- Contact Finish - Post
- -
- Contact Material
- Brass
- Insulation Material
- Polyamide (PA), Nylon
- Features
- -
- Operating Temperature
- -40°C ~ 105°C
- Ingress Protection
- -
- Material Flammability Rating
- UL94 V-0
- Insulation Color
- Natural
- Current Rating (Amps)
- 9A
- Voltage Rating
- 600VAC
