1-776087-1
- 型號描述:
-

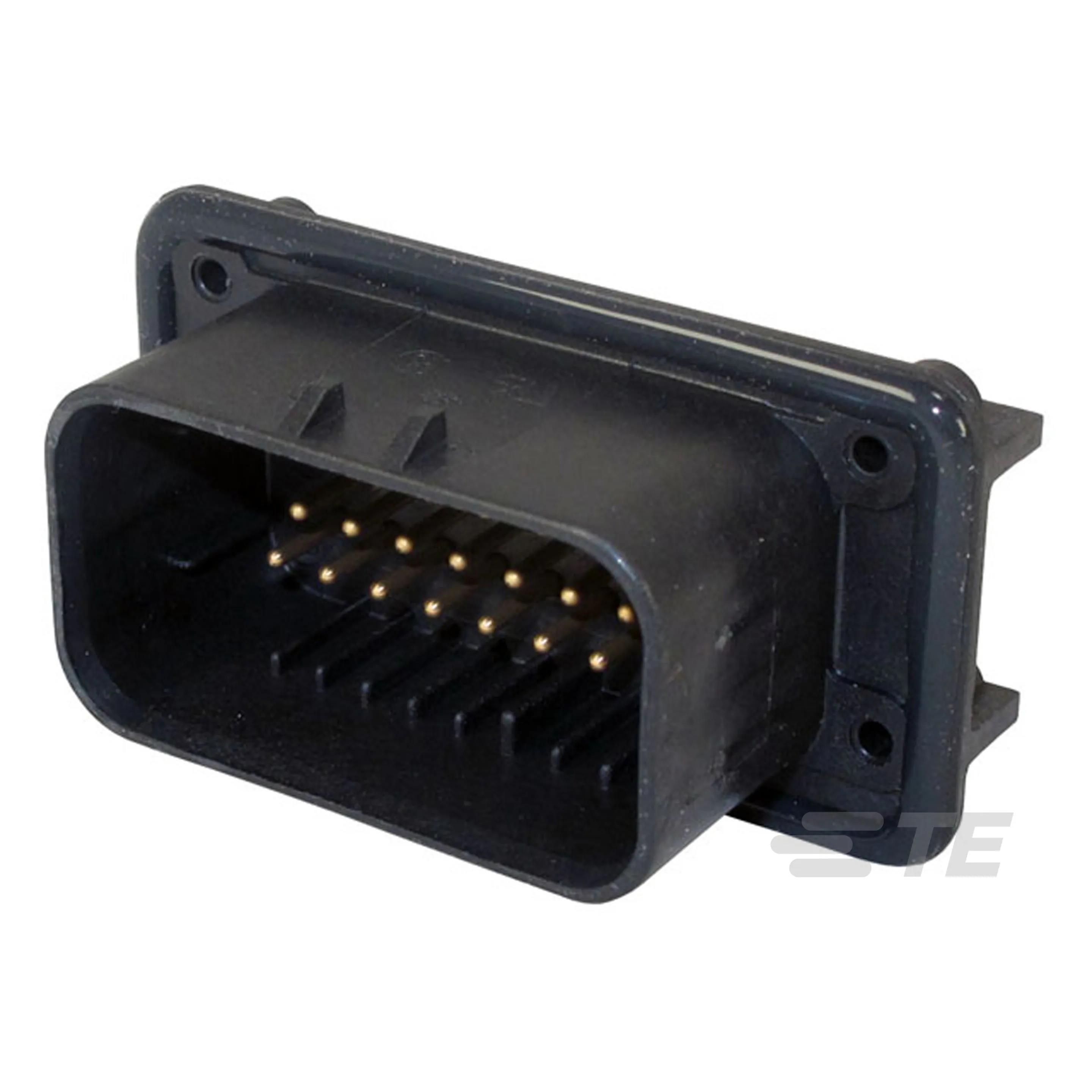

Connector Header Panel Mount, Through Hole, Right Angle 23 position 0.157" (4.00mm)
- 型號:
- 1-776087-1
- 品牌:
- TE Connectivity / AMP Brand
- 交期:
- 7-10工作天
- 原廠包裝量:
- 40
- 幣別 (NTD)稅前單價/PCS
- 點擊查看即時庫存
| 5+ | NT$454.3711 |
| 40+ | NT$411.8668 |
| 80+ | NT$393.1649 |
| 120+ | NT$382.1138 |
| 280+ | NT$360.8616 |
| 520+ | NT$326.8582 |
| 1000+ | NT$304.3309 |
起訂量：5
倍增量：1
價格:
NT$454.3711
數量:
合計: NT$2272
- Packaging
- Tray
- Features
- Board Guide, Sealable
- Connector Type
- Header
- Voltage Rating
- 250VAC
- Current Rating (Amps)
- Varies by Wire Gauge
- Mounting Type
- Panel Mount, Through Hole, Right Angle
- Number of Positions
- 23
- Number of Rows
- 3
- Style
- Board to Cable/Wire
- Operating Temperature
- -40°C ~ 125°C
- Contact Type
- Male Pin
- Fastening Type
- Locking Ramp
- Number of Positions Loaded
- All
- Termination
- Solder
- Ingress Protection
- -
- Material Flammability Rating
- UL94 V-0
- Contact Material
- Brass
- Insulation Color
- Black
- Pitch - Mating
- 0.157" (4.00mm)
- Contact Finish - Mating
- Gold
- Contact Finish Thickness - Mating
- -
- Contact Finish - Post
- Gold
- Contact Shape
- Circular
- Contact Length - Post
- -
- Insulation Height
- -
- Shrouding
- Shrouded - 4 Wall
- Overall Contact Length
- -
- Insulation Material
- Polybutylene Terephthalate (PBT), Glass Filled
- Row Spacing - Mating
- 0.157" (4.00mm)
- Contact Length - Mating
- -
