1-1743386-2
- 型號描述:
-

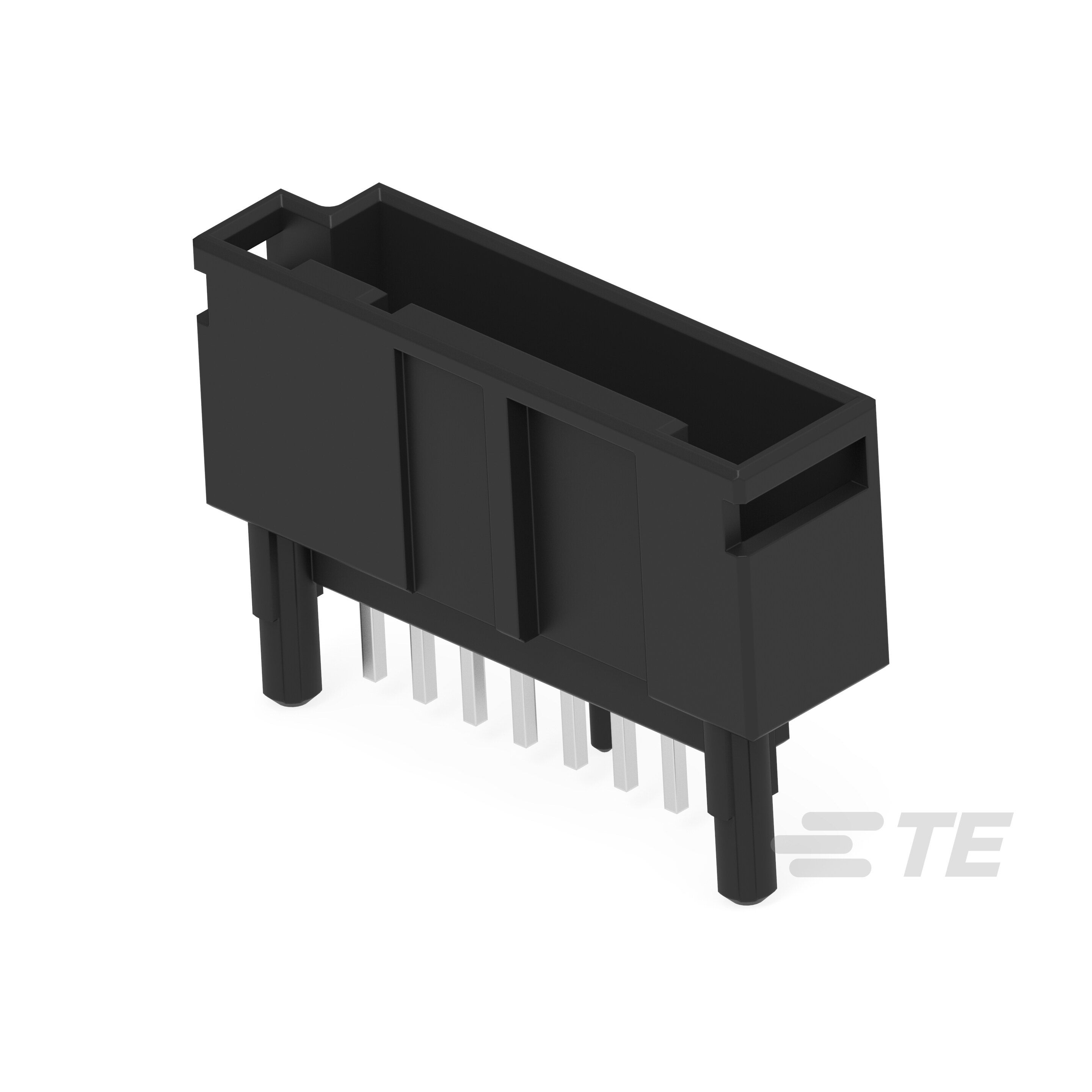

Connector Header Through Hole 8 position 0.100" (2.54mm)
MQS HDR 8P ASSY(V-TYPE/B)
- 型號:
- 1-1743386-2
- 品牌:
- TE Connectivity AMP Connectors
- 交期:
- 5-8工作天
- 原廠包裝量:
- 17
- Packaging
- Tube
- Features
- Board Guide
- Connector Type
- Header
- Voltage Rating
- 12VDC
- Current Rating (Amps)
- 6A
- Mounting Type
- Through Hole
- Number of Positions
- 8
- Number of Rows
- 1
- Style
- Board to Cable/Wire
- Operating Temperature
- -40°C ~ 120°C
- Contact Type
- Male Pin
- Fastening Type
- Push-Pull
- Number of Positions Loaded
- All
- Termination
- Solder
- Ingress Protection
- -
- Material Flammability Rating
- UL94 HB
- Contact Material
- Phosphor Bronze
- Insulation Color
- Black
- Pitch - Mating
- 0.100" (2.54mm)
- Contact Finish - Mating
- Tin
- Contact Finish Thickness - Mating
- -
- Contact Finish - Post
- Tin
- Contact Shape
- Square
- Contact Length - Post
- 0.157" (4.00mm)
- Insulation Height
- 0.610" (15.49mm)
- Shrouding
- Shrouded - 4 Wall
- Overall Contact Length
- -
- Insulation Material
- Polybutylene Terephthalate (PBT), Glass Filled
- Row Spacing - Mating
- -
- Contact Length - Mating
- 0.264" (6.70mm)
