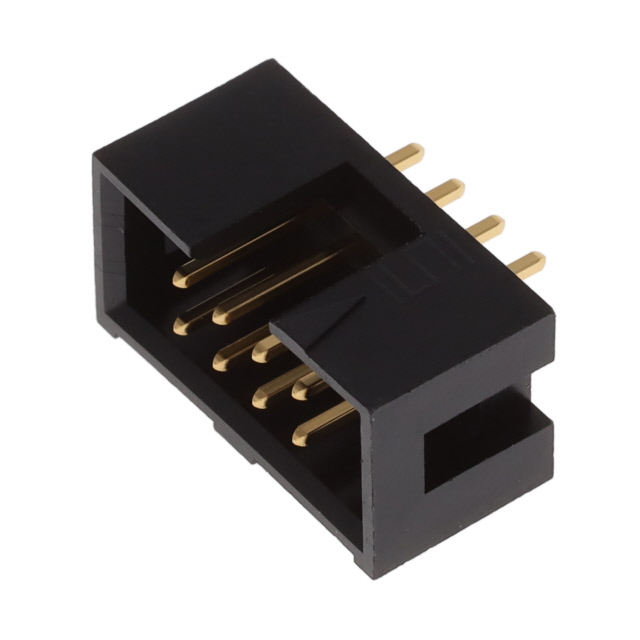

TST-104-01-G-D
- 型號描述:
-
Connector Header Through Hole 8 position 0.100" (2.54mm)
- 型號:
- TST-104-01-G-D
- 品牌:
- Samtec
- 交期:
- 7-10工作天
- 原廠包裝量:
- 1
- 幣別 (NTD)稅前單價/PCS
- 點擊查看即時庫存
| 10+ | NT$108.2077 |
| 100+ | NT$95.9907 |
| 250+ | NT$91.1912 |
| 500+ | NT$87.7006 |
| 1000+ | NT$67.6298 |
| 2500+ | NT$59.776 |
| 5000+ | NT$47.559 |
| 7500+ | NT$46.2501 |
起訂量：10
倍增量：1
價格:
NT$108.2077
數量:
合計: NT$1082
- Packaging
- Bulk
- Features
- Keying Slot
- Connector Type
- Header
- Voltage Rating
- -
- Current Rating (Amps)
- 3.4A per Contact
- Mounting Type
- Through Hole
- Number of Positions
- 8
- Number of Rows
- 2
- Style
- Board to Cable/Wire
- Operating Temperature
- -55°C ~ 125°C
- Contact Type
- Male Pin
- Fastening Type
- Push-Pull
- Number of Positions Loaded
- All
- Termination
- Solder
- Ingress Protection
- -
- Material Flammability Rating
- UL94 V-0
- Contact Material
- Phosphor Bronze
- Insulation Color
- Black
- Pitch - Mating
- 0.100" (2.54mm)
- Contact Finish - Mating
- Gold
- Contact Finish Thickness - Mating
- 10.0µin (0.25µm)
- Contact Finish - Post
- Gold
- Contact Shape
- Square
- Contact Length - Post
- 0.115" (2.92mm)
- Insulation Height
- 0.350" (8.89mm)
- Shrouding
- Shrouded - 4 Wall
- Overall Contact Length
- 0.480" (12.19mm)
- Insulation Material
- Polybutylene Terephthalate (PBT), Glass Filled
- Row Spacing - Mating
- 0.100" (2.54mm)
- Contact Length - Mating
- 0.250" (6.35mm)
