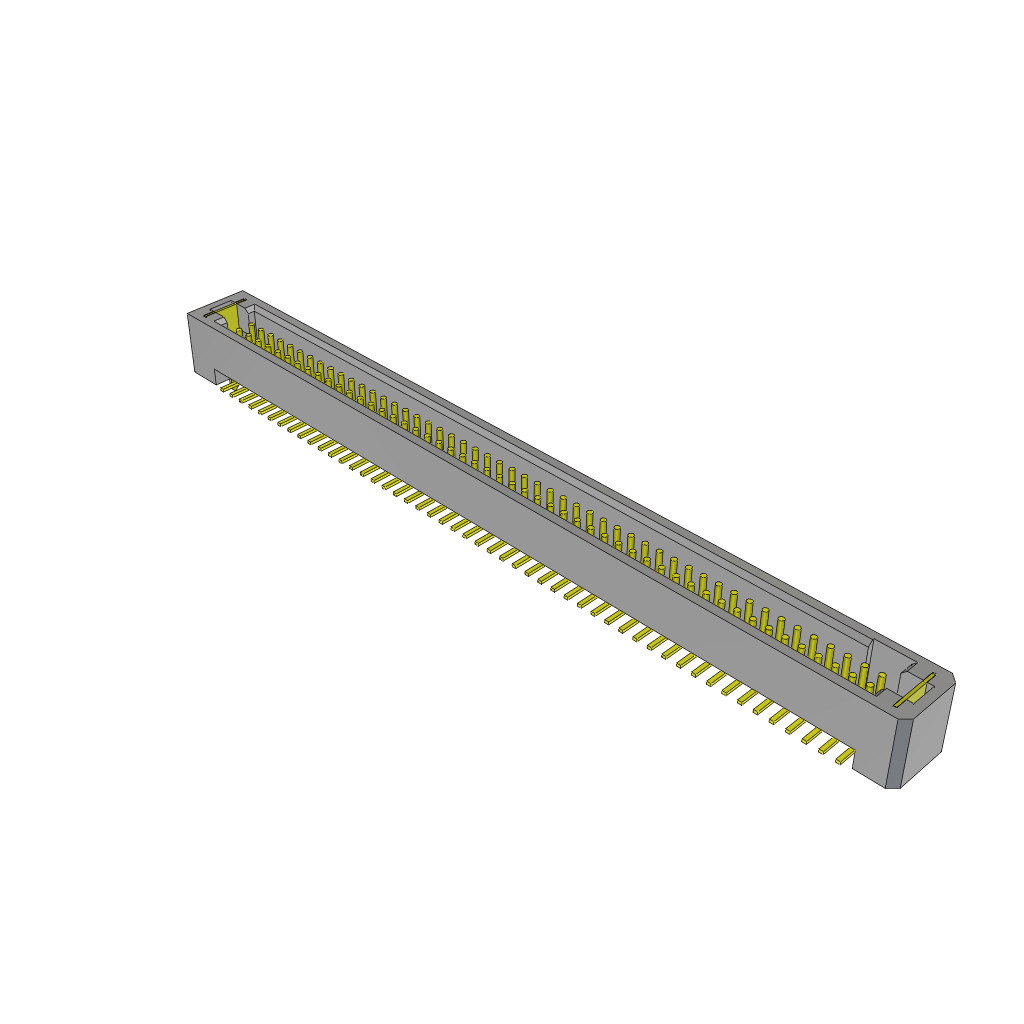

TFM-150-02-STL-D-WT
- 型號描述:
-
Connector Header Surface Mount 100 position 0.050" (1.27mm)
HIGH-RELIABILITY TIGER EYE TERMI
- 型號:
- TFM-150-02-STL-D-WT
- 品牌:
- Samtec Inc.
- 交期:
- 5-8工作天
- 原廠包裝量:
- Connector Type
- Header
- Contact Type
- Male Pin
- Pitch - Mating
- 0.050" (1.27mm)
- Number of Positions
- 100
- Number of Rows
- 2
- Row Spacing - Mating
- 0.050" (1.27mm)
- Number of Positions Loaded
- All
- Style
- Board to Board or Cable
- Shrouding
- Shrouded - 4 Wall
- Mounting Type
- Surface Mount
- Termination
- Solder
- Fastening Type
- Push-Pull
- Contact Length - Mating
- 0.131" (3.33mm)
- Contact Length - Post
- -
- Overall Contact Length
- -
- Insulation Height
- 0.220" (5.60mm)
- Contact Shape
- Square
- Contact Finish - Mating
- Gold
- Contact Finish Thickness - Mating
- 30.0µin (0.76µm)
- Contact Finish - Post
- Tin
- Contact Material
- Phosphor Bronze
- Insulation Material
- Liquid Crystal Polymer (LCP)
- Features
- Solder Retention
- Operating Temperature
- -55°C ~ 125°C
- Ingress Protection
- -
- Material Flammability Rating
- UL94 V-0
- Insulation Color
- Black
- Current Rating (Amps)
- 3.2A per Contact
- Voltage Rating
- 250VAC
