IPL1-106-01-L-D-RA-K
- 型號描述:
-

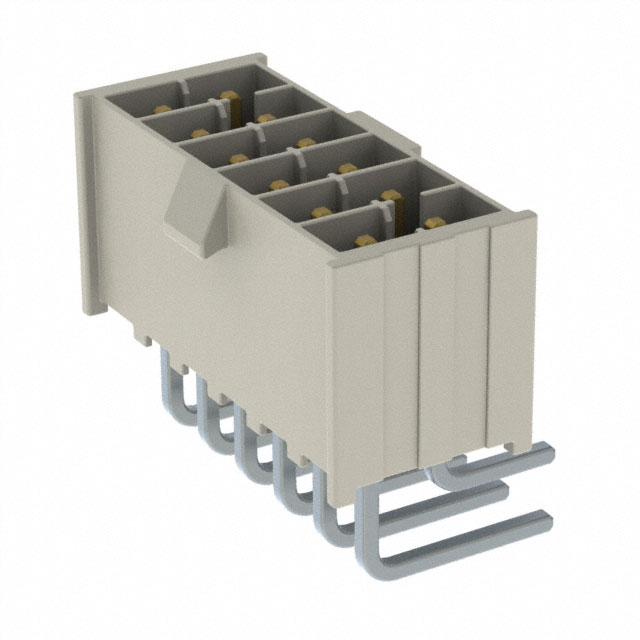

Connector Header Through Hole, Right Angle 12 position 0.100" (2.54mm)
CONN HEADER R/A 12POS 2.54MM
- 型號:
- IPL1-106-01-L-D-RA-K
- 品牌:
- Samtec Inc.
- 交期:
- 5-8工作天
- 原廠包裝量:
- 幣別 (NTD)稅前單價/PCS
- 點擊查看即時庫存
| 1+ | NT$100.4416 |
| 100+ | NT$89.6838 |
| 250+ | NT$81.0048 |
| 500+ | NT$70.7367 |
| 1000+ | NT$64.842 |
| 2500+ | NT$56.9824 |
| 5000+ | NT$53.7581 |
起訂量：1
倍增量：1
價格:
NT$100.4416
數量:
合計: NT$100
- Packaging
- Tube
- Features
- -
- Connector Type
- Header
- Voltage Rating
- 675VAC, 954VDC
- Current Rating (Amps)
- -
- Mounting Type
- Through Hole, Right Angle
- Number of Positions
- 12
- Number of Rows
- 2
- Style
- Board to Cable/Wire
- Operating Temperature
- -55°C ~ 125°C
- Contact Type
- Male Pin
- Fastening Type
- Locking Ramp
- Number of Positions Loaded
- All
- Termination
- Solder
- Ingress Protection
- -
- Material Flammability Rating
- UL94 V-0
- Contact Material
- Phosphor Bronze
- Insulation Color
- Natural
- Pitch - Mating
- 0.100" (2.54mm)
- Contact Finish - Mating
- Gold
- Contact Finish Thickness - Mating
- 10.0µin (0.25µm)
- Contact Finish - Post
- Tin
- Contact Shape
- Square
- Contact Length - Post
- 0.085" (2.16mm)
- Insulation Height
- 0.290" (7.37mm)
- Shrouding
- Shrouded - 4 Wall
- Overall Contact Length
- -
- Insulation Material
- Liquid Crystal Polymer (LCP)
- Row Spacing - Mating
- 0.100" (2.54mm)
- Contact Length - Mating
- 0.215" (5.46mm)
