EHF-108-01-F-D-RA
- 型號描述:
-

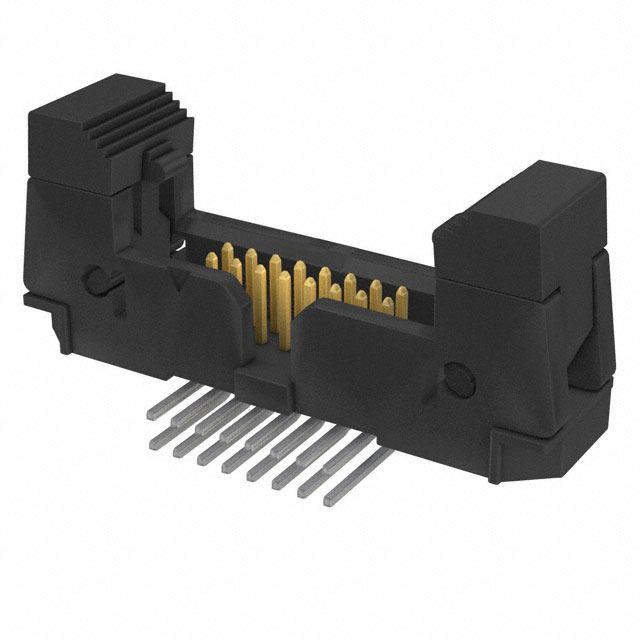

Connector Header Through Hole, Right Angle 16 position 0.050" (1.27mm)
- 型號:
- EHF-108-01-F-D-RA
- 品牌:
- Samtec
- 交期:
- 7-12工作天
- 原廠包裝量:
- 1
- 幣別 (NTD)稅前單價/PCS
- 點擊查看即時庫存
| 1+ | NT$181.2978 |
| 25+ | NT$163.8489 |
| 50+ | NT$152.3582 |
| 100+ | NT$137.0373 |
起訂量：1
倍增量：1
價格:
NT$181.2978
數量:
合計: NT$181
- Packaging
- Tube
- Features
- Keying Slot
- Connector Type
- Header
- Voltage Rating
- -
- Current Rating (Amps)
- 1.75A
- Mounting Type
- Through Hole, Right Angle
- Number of Positions
- 16
- Number of Rows
- 2
- Style
- Board to Cable/Wire
- Operating Temperature
- -55°C ~ 125°C
- Contact Type
- Male Pin
- Fastening Type
- Latch Lock/Eject Hooks
- Number of Positions Loaded
- All
- Termination
- Solder
- Ingress Protection
- -
- Material Flammability Rating
- -
- Contact Material
- Phosphor Bronze
- Insulation Color
- Black
- Pitch - Mating
- 0.050" (1.27mm)
- Contact Finish - Mating
- Gold
- Contact Finish Thickness - Mating
- 3.00µin (0.076µm)
- Contact Finish - Post
- Tin
- Contact Shape
- Square
- Contact Length - Post
- 0.090" (2.29mm)
- Insulation Height
- 0.263" (6.67mm)
- Shrouding
- Shrouded - 4 Wall
- Overall Contact Length
- -
- Insulation Material
- Liquid Crystal Polymer (LCP), Glass Filled
- Row Spacing - Mating
- 0.050" (1.27mm)
- Contact Length - Mating
- 0.120" (3.05mm)
