2005280301
- 型號描述:
-

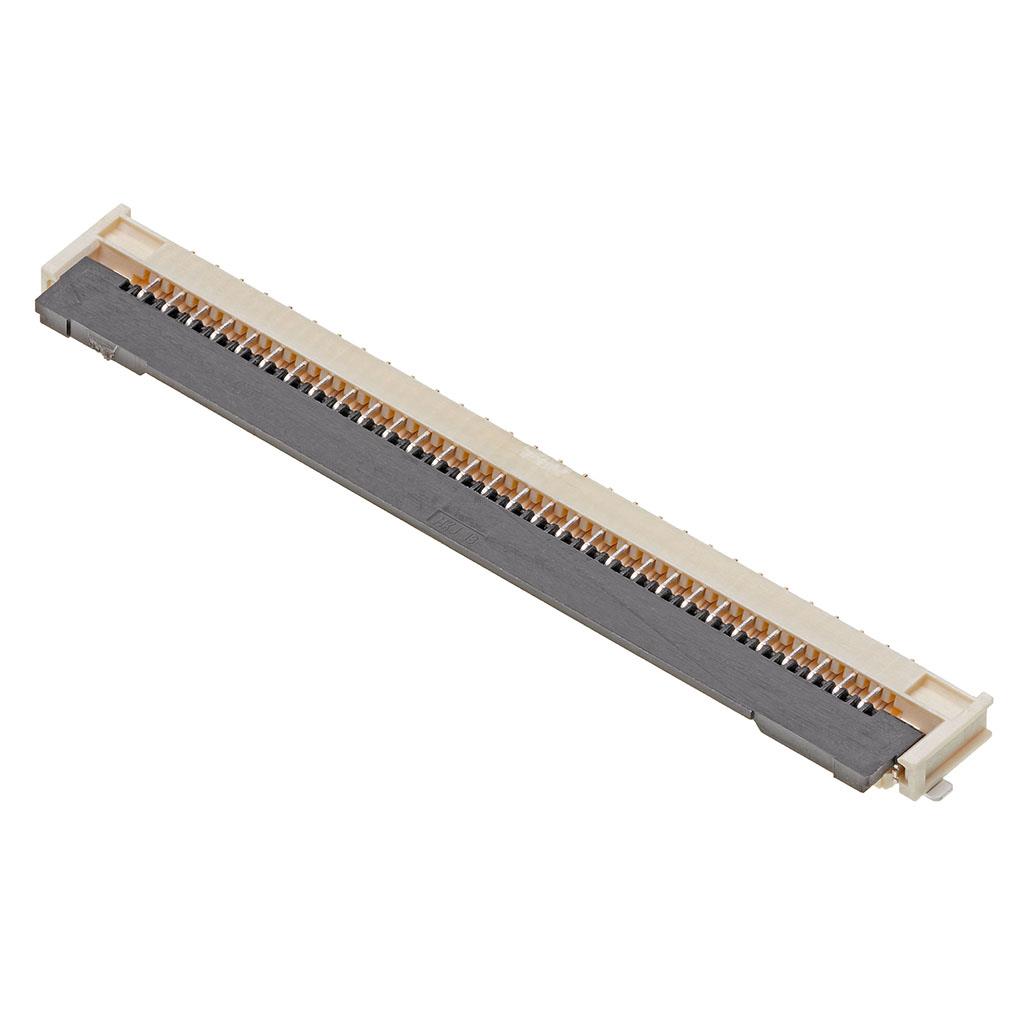

30 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
CONN FFC FPC BOTTOM 30POS 1MM RA
- 型號:
- 2005280301
- 品牌:
- Molex
- 交期:
- 5-8工作天
- 原廠包裝量:
- Packaging
- Tape & Reel (TR)
- Features
- Solder Retention, Zero Insertion Force (ZIF)
- Contact Finish
- Gold
- Voltage Rating
- 125V
- Mounting Type
- Surface Mount, Right Angle
- Number of Positions
- 30
- Pitch
- 0.039" (1.00mm)
- Operating Temperature
- -40°C ~ 150°C
- Termination
- Solder
- Height Above Board
- 0.075" (1.90mm)
- Locking Feature
- Flip Lock
- Material Flammability Rating
- UL94 V-0
- Actuator Material
- Polyamide (PA), Nylon, Glass Filled
- Contact Material
- Copper Alloy
- FFC, FCB Thickness
- 0.30mm
- Housing Material
- Liquid Crystal Polymer (LCP), Glass Filled
- Cable End Type
- Straight, Tabbed
- Flat Flex Type
- FFC, FPC
- Connector/Contact Type
- Contacts, Bottom
