0906631302
- 型號描述:
-

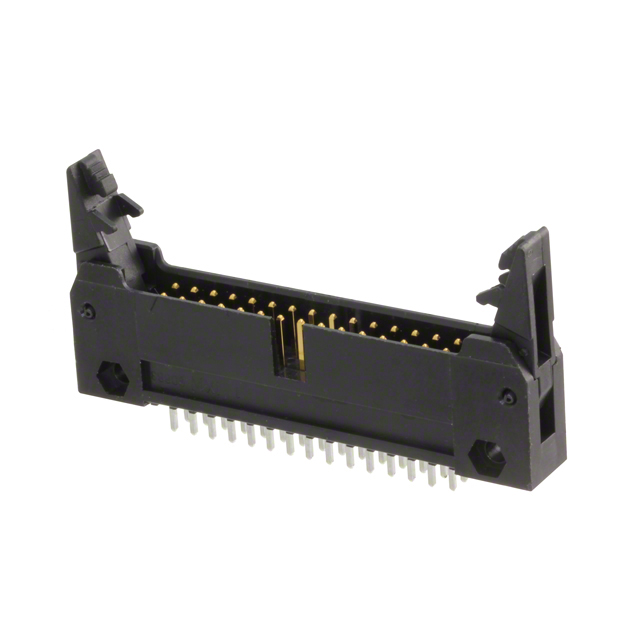

Connector Header Through Hole 30 position 0.100" (2.54mm)
CONN HEADER VERT 30POS 2.54MM
- 型號:
- 0906631302
- 品牌:
- Molex
- 交期:
- 5-8工作天
- 原廠包裝量:
- Packaging
- Tray
- Features
- Mounting Flange
- Connector Type
- Header
- Voltage Rating
- -
- Current Rating (Amps)
- -
- Mounting Type
- Through Hole
- Number of Positions
- 30
- Number of Rows
- 2
- Style
- Board to Cable/Wire
- Operating Temperature
- -
- Contact Type
- Male Pin
- Fastening Type
- Latch Lock/Eject Hooks
- Number of Positions Loaded
- All
- Termination
- Solder
- Ingress Protection
- -
- Material Flammability Rating
- UL94 V-0
- Contact Material
- Brass
- Insulation Color
- Black
- Pitch - Mating
- 0.100" (2.54mm)
- Contact Finish - Mating
- Gold
- Contact Finish Thickness - Mating
- 30.0µin (0.76µm)
- Contact Finish - Post
- Tin
- Contact Shape
- Square
- Contact Length - Post
- 0.138" (3.50mm)
- Insulation Height
- 0.642" (16.30mm)
- Shrouding
- Shrouded - 4 Wall
- Overall Contact Length
- 0.657" (16.70mm)
- Insulation Material
- Polyester, Glass Filled
- Row Spacing - Mating
- 0.100" (2.54mm)
- Contact Length - Mating
- 0.200" (5.08mm)
