0194280030
- 型號描述:
-

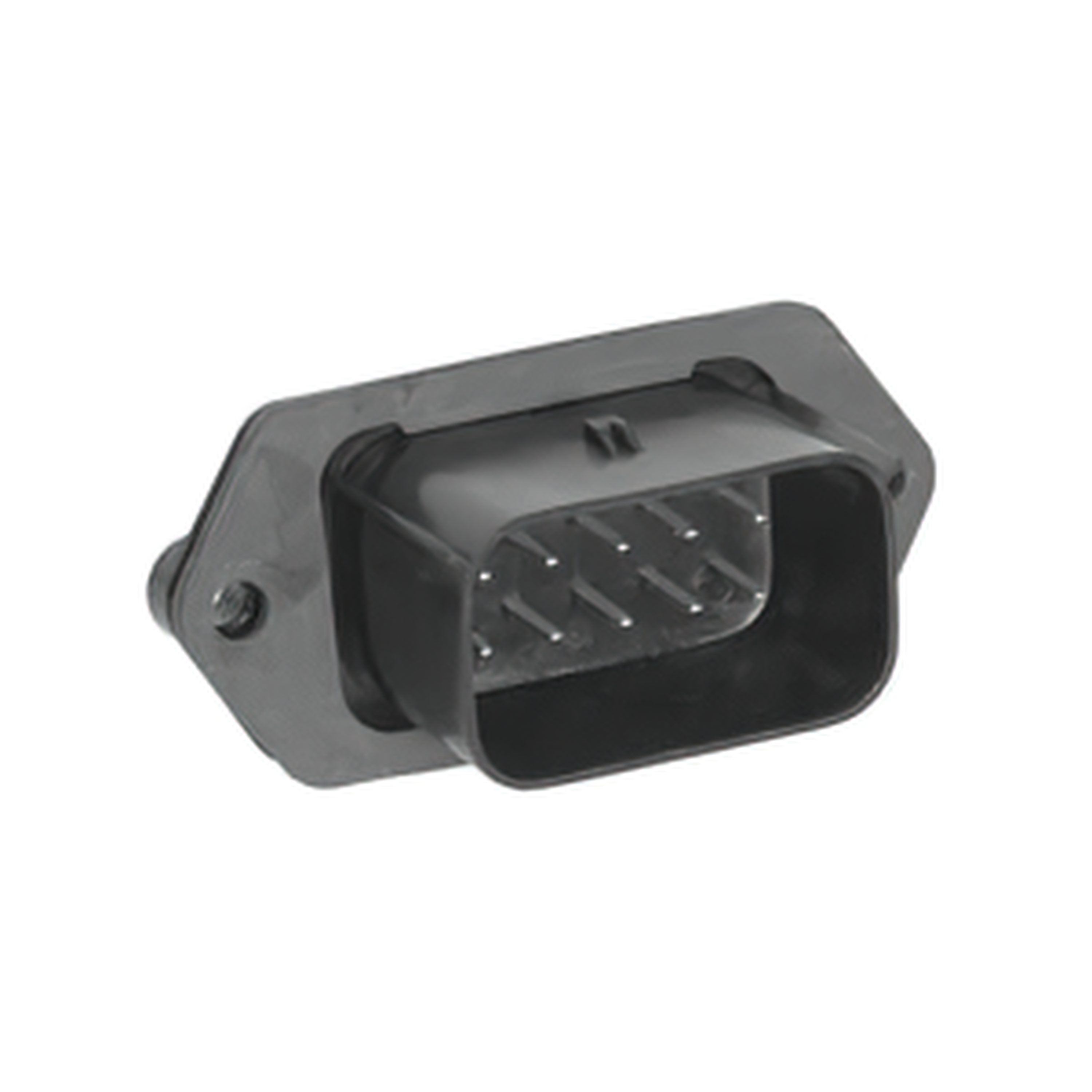

Connector Header Panel Mount, Through Hole 10 position 0.230" (5.84mm)
CONN HEADER VERT 10POS 5.84MM
- 型號:
- 0194280030
- 品牌:
- Molex
- 交期:
- 5-8工作天
- 原廠包裝量:
- Packaging
- Tray
- Features
- Board Guide, Mounting Flange
- Connector Type
- Header
- Voltage Rating
- -
- Current Rating (Amps)
- -
- Mounting Type
- Panel Mount, Through Hole
- Number of Positions
- 10
- Number of Rows
- 2
- Style
- Board to Cable/Wire
- Operating Temperature
- -
- Contact Type
- Male Blade
- Fastening Type
- Locking Ramp
- Number of Positions Loaded
- All
- Termination
- Solder
- Ingress Protection
- IP67 - Dust Tight, Waterproof
- Material Flammability Rating
- UL94 V-0
- Contact Material
- Copper Alloy
- Insulation Color
- Black
- Pitch - Mating
- 0.230" (5.84mm)
- Contact Finish - Mating
- Gold
- Contact Finish Thickness - Mating
- 30.0µin (0.76µm)
- Contact Finish - Post
- Tin
- Contact Shape
- Square
- Contact Length - Post
- 0.130" (3.30mm)
- Insulation Height
- 1.094" (27.80mm)
- Shrouding
- Shrouded - 4 Wall
- Overall Contact Length
- -
- Insulation Material
- Polybutylene Terephthalate (PBT), Glass Filled
- Row Spacing - Mating
- 0.236" (6.00mm)
- Contact Length - Mating
- -
