DF51A-22DP-2DS(50)
- 型號描述:
-

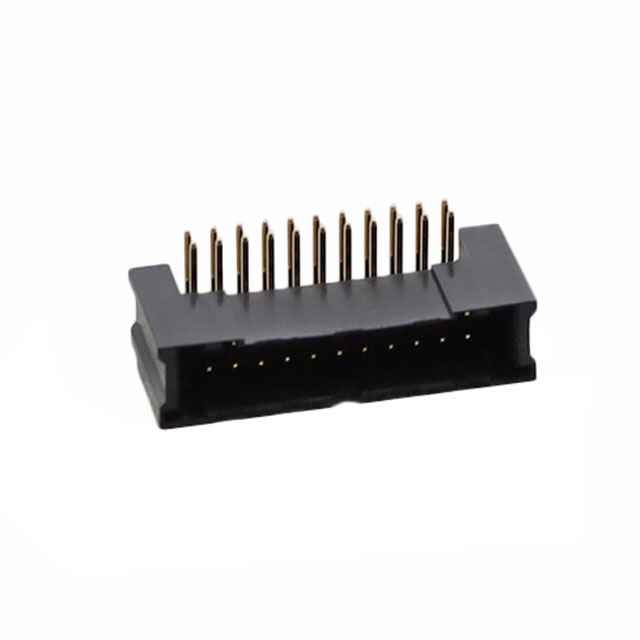

Connector Header Through Hole, Right Angle 22 position 0.079" (2.00mm)
集管和線殼
- 型號:
- DF51A-22DP-2DS(50)
- 品牌:
- Hirose Connector
- 交期:
- 5-8工作天
- 原廠包裝量:
- 90
- 幣別 (NTD)稅前單價/PCS
- 點擊查看即時庫存
| 1+ | NT$98.7896 |
| 10+ | NT$96.8072 |
| 25+ | NT$94.164 |
| 50+ | NT$72.0272 |
| 90+ | NT$68.0624 |
| 270+ | NT$67.732 |
| 540+ | NT$63.1064 |
| 1080+ | NT$58.4808 |
| 2520+ | NT$53.8552 |
起訂量：1
倍增量：1
價格:
NT$98.7896
數量:
合計: NT$99
- Packaging
- Tray
- Features
- -
- Connector Type
- Header
- Voltage Rating
- 30VAC/DC
- Current Rating (Amps)
- Varies by Wire Gauge
- Mounting Type
- Through Hole, Right Angle
- Number of Positions
- 22
- Number of Rows
- 2
- Style
- Board to Cable/Wire
- Operating Temperature
- -55°C ~ 105°C
- Contact Type
- Male Pin
- Fastening Type
- Detent Lock
- Number of Positions Loaded
- All
- Termination
- Solder
- Ingress Protection
- -
- Material Flammability Rating
- UL94 V-0
- Contact Material
- Brass
- Insulation Color
- Black
- Pitch - Mating
- 0.079" (2.00mm)
- Contact Finish - Mating
- Gold
- Contact Finish Thickness - Mating
- 3.94µin (0.100µm)
- Contact Finish - Post
- Gold
- Contact Shape
- Square
- Contact Length - Post
- 0.118" (3.00mm)
- Insulation Height
- 0.287" (7.30mm)
- Shrouding
- Shrouded - 4 Wall
- Overall Contact Length
- -
- Insulation Material
- Polybutylene Terephthalate (PBT), Glass Filled
- Row Spacing - Mating
- 0.079" (2.00mm)
- Contact Length - Mating
- -
