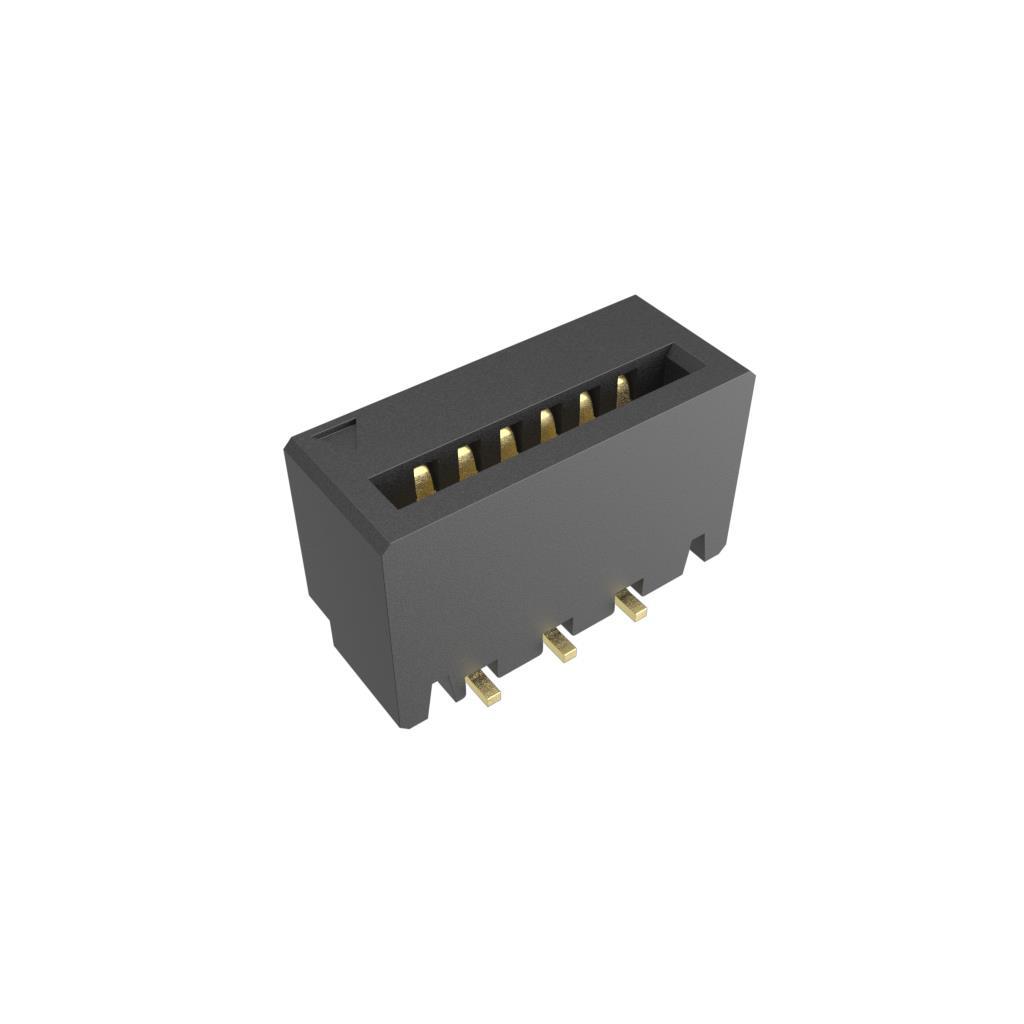

HFW6S-2STAE1HLF
- 型號描述:
-
6 Position FFC, FPC Connector Contacts, Top 0.039" (1.00mm) Surface Mount
FFC/FPC FLEX CONN
- 型號:
- HFW6S-2STAE1HLF
- 品牌:
- Amphenol ICC (FCI)
- 交期:
- 5-8工作天
- 原廠包裝量:
- Packaging
- Tape & Reel (TR)
- Features
- -
- Contact Finish
- Gold
- Voltage Rating
- 100V
- Mounting Type
- Surface Mount
- Number of Positions
- 6
- Pitch
- 0.039" (1.00mm)
- Operating Temperature
- -55°C ~ 105°C
- Termination
- Solder
- Height Above Board
- 0.209" (5.30mm)
- Locking Feature
- -
- Material Flammability Rating
- UL94 V-0
- Actuator Material
- -
- Contact Material
- Phosphor Bronze
- FFC, FCB Thickness
- 0.30mm
- Housing Material
- Liquid Crystal Polymer (LCP), Halogen Free
- Cable End Type
- Straight, Tapered
- Flat Flex Type
- FFC, FPC
- Connector/Contact Type
- Contacts, Top
