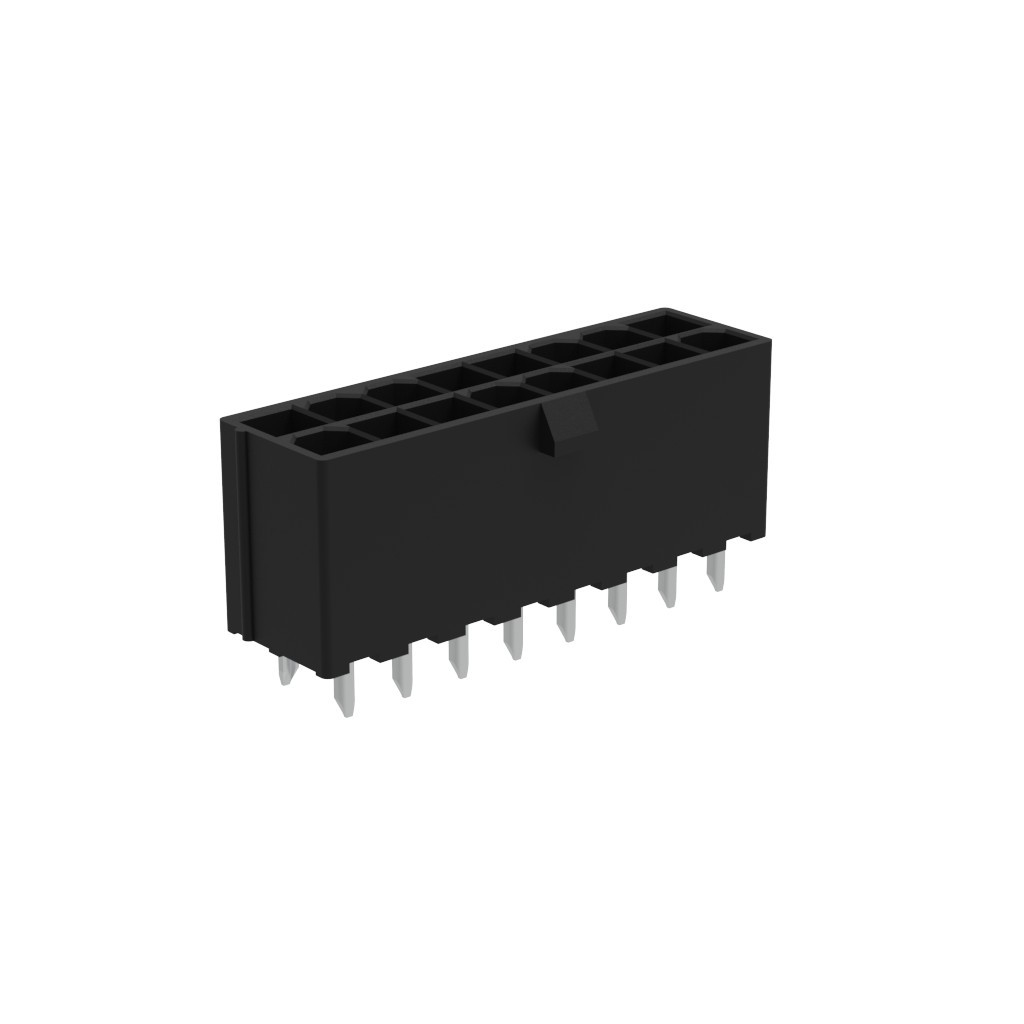

G87MP161205CHR
- 型號描述:
-
Connector Header Through Hole 16 position 0.165" (4.20mm)
MINI POWER PLUS 4.2MM
- 型號:
- G87MP161205CHR
- 品牌:
- Amphenol ICC (Commercial Products)
- 交期:
- 5-8工作天
- 原廠包裝量:
- Connector Type
- Header
- Contact Type
- Male Pin
- Pitch - Mating
- 0.165" (4.20mm)
- Number of Positions
- 16
- Number of Rows
- 2
- Row Spacing - Mating
- 0.165" (4.20mm)
- Number of Positions Loaded
- All
- Style
- Board to Cable/Wire
- Shrouding
- Shrouded - 4 Wall
- Mounting Type
- Through Hole
- Termination
- Solder
- Fastening Type
- Locking Ramp
- Contact Length - Mating
- -
- Contact Length - Post
- 0.138" (3.50mm)
- Overall Contact Length
- -
- Insulation Height
- 0.504" (12.80mm)
- Contact Shape
- Square
- Contact Finish - Mating
- Tin
- Contact Finish Thickness - Mating
- 100.0µin (2.54µm)
- Contact Finish - Post
- Tin
- Contact Material
- Copper Alloy
- Insulation Material
- Liquid Crystal Polymer (LCP)
- Features
- Pick and Place
- Operating Temperature
- -55°C ~ 105°C
- Ingress Protection
- -
- Material Flammability Rating
- UL94 V-0
- Insulation Color
- Black
- Current Rating (Amps)
- 13A
- Voltage Rating
- 600VAC
