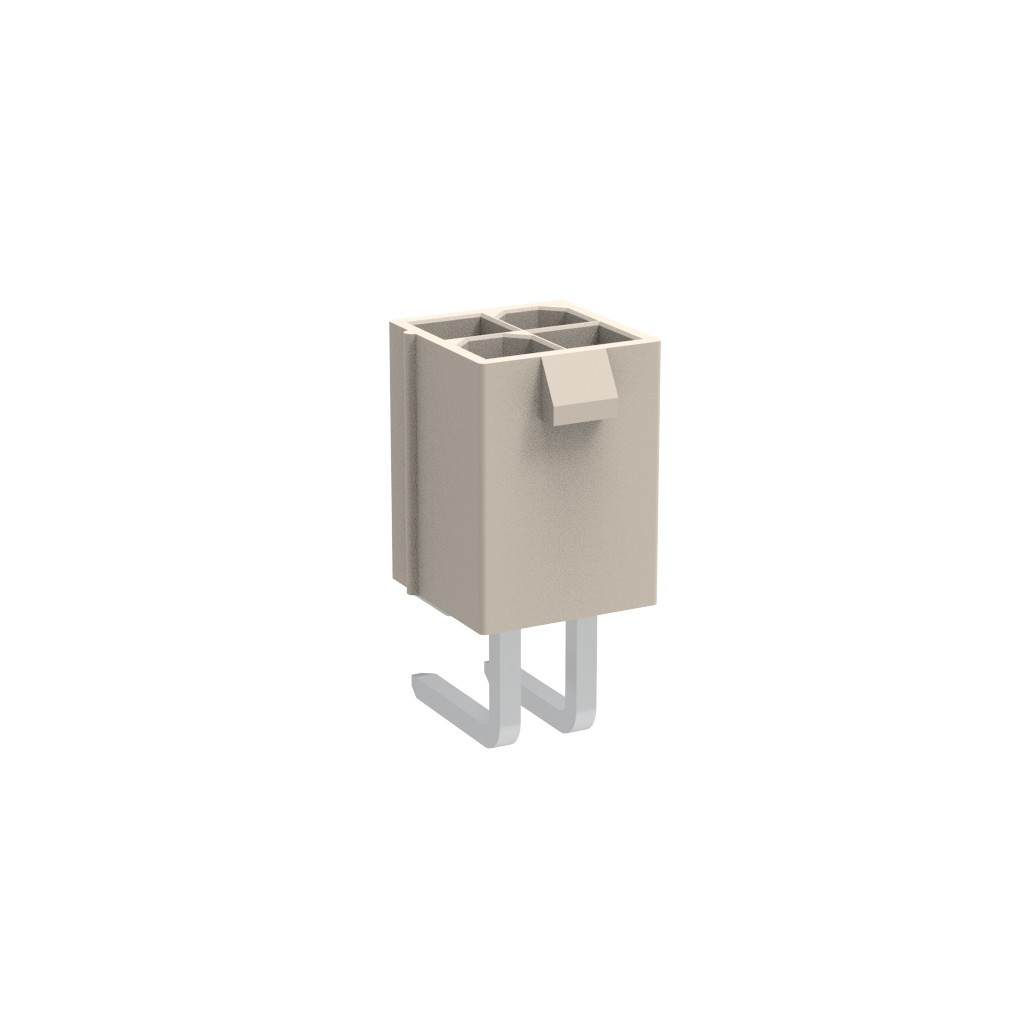

G874D042200CEU
- 型號描述:
-
Connector Header Through Hole, Right Angle 4 position 0.165" (4.20mm)
G874D042200CEU-P-4.2MM HDR RA DI
- 型號:
- G874D042200CEU
- 品牌:
- Amphenol ICC (Commercial Products)
- 交期:
- 5-8工作天
- 原廠包裝量:
- 4000
- Connector Type
- Header
- Contact Type
- Male Pin
- Pitch - Mating
- 0.165" (4.20mm)
- Number of Positions
- 4
- Number of Rows
- 2
- Row Spacing - Mating
- 0.165" (4.20mm)
- Number of Positions Loaded
- All
- Style
- Board to Cable/Wire
- Shrouding
- Shrouded - 4 Wall
- Mounting Type
- Through Hole, Right Angle
- Termination
- Solder
- Fastening Type
- Locking Ramp
- Contact Length - Mating
- -
- Contact Length - Post
- 0.142" (3.60mm)
- Overall Contact Length
- -
- Insulation Height
- 0.449" (11.40mm)
- Contact Shape
- Square
- Contact Finish - Mating
- Tin
- Contact Finish Thickness - Mating
- 100.0µin (2.54µm)
- Contact Finish - Post
- Tin
- Contact Material
- Brass
- Insulation Material
- Polyamide (PA), Nylon
- Features
- -
- Operating Temperature
- -55°C ~ 105°C
- Ingress Protection
- -
- Material Flammability Rating
- UL94 V-0
- Insulation Color
- Natural
- Current Rating (Amps)
- 9A
- Voltage Rating
- 500VAC
