G8232812YCPTHR
- 型號描述:
-

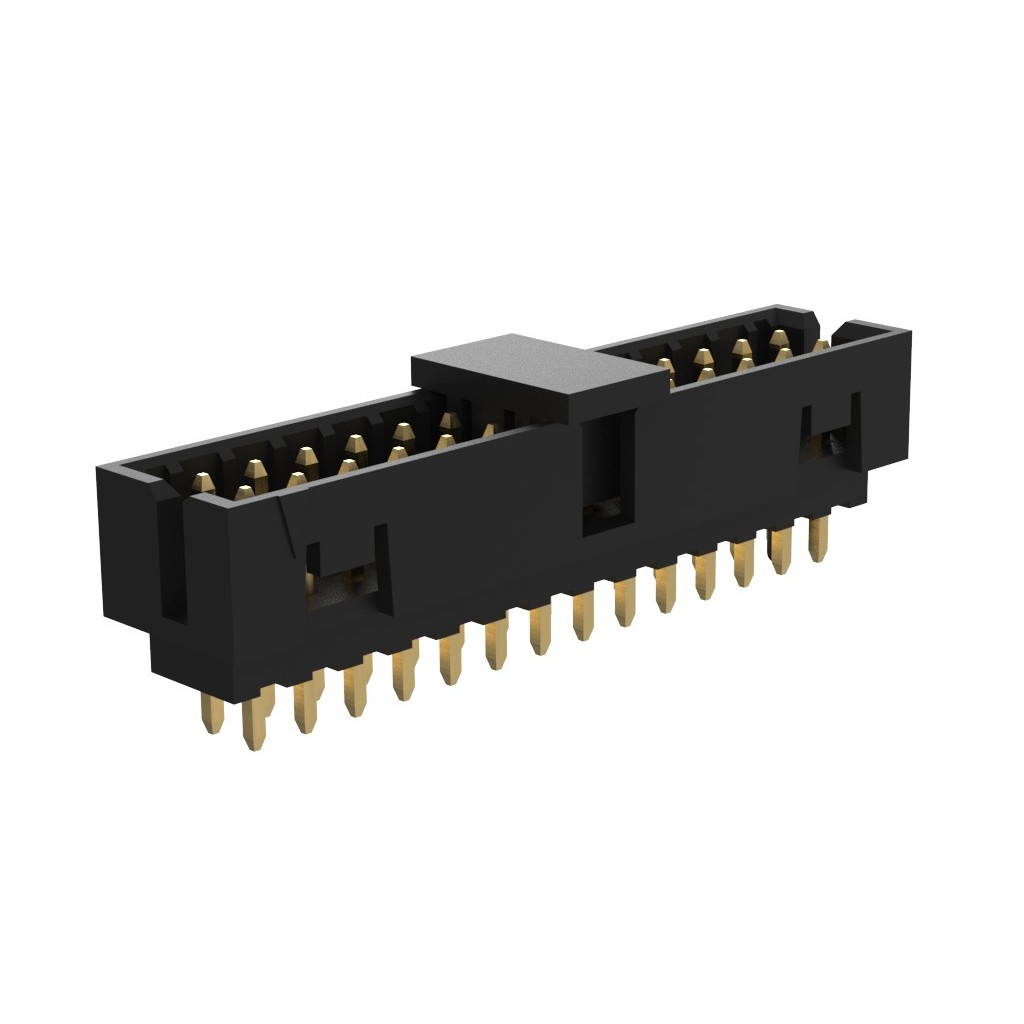

Connector Header Through Hole 28 position 0.079" (2.00mm)
BOX HEADER 2.0MM PITCH STR DIP,2
- 型號:
- G8232812YCPTHR
- 品牌:
- Amphenol ICC (Commercial Products)
- 交期:
- 5-8工作天
- 原廠包裝量:
- Connector Type
- Header
- Contact Type
- Male Pin
- Pitch - Mating
- 0.079" (2.00mm)
- Number of Positions
- 28
- Number of Rows
- 2
- Row Spacing - Mating
- 0.079" (2.00mm)
- Number of Positions Loaded
- All
- Style
- Board to Cable/Wire
- Shrouding
- Shrouded - 4 Wall
- Mounting Type
- Through Hole
- Termination
- Solder
- Fastening Type
- Detent Lock
- Contact Length - Mating
- -
- Contact Length - Post
- 0.085" (2.16mm)
- Overall Contact Length
- 0.252" (6.40mm)
- Insulation Height
- 0.252" (6.40mm)
- Contact Shape
- Square
- Contact Finish - Mating
- Gold
- Contact Finish Thickness - Mating
- 30.0µin (0.76µm)
- Contact Finish - Post
- Gold
- Contact Material
- Copper Alloy
- Insulation Material
- Polyamide (PA4T), Nylon 4T
- Features
- Board Guide, Pick and Place, Solder Retention
- Operating Temperature
- -25°C ~ 85°C
- Ingress Protection
- -
- Material Flammability Rating
- UL94 V-0
- Insulation Color
- Black
- Current Rating (Amps)
- 1.5A
- Voltage Rating
- 250VDC
