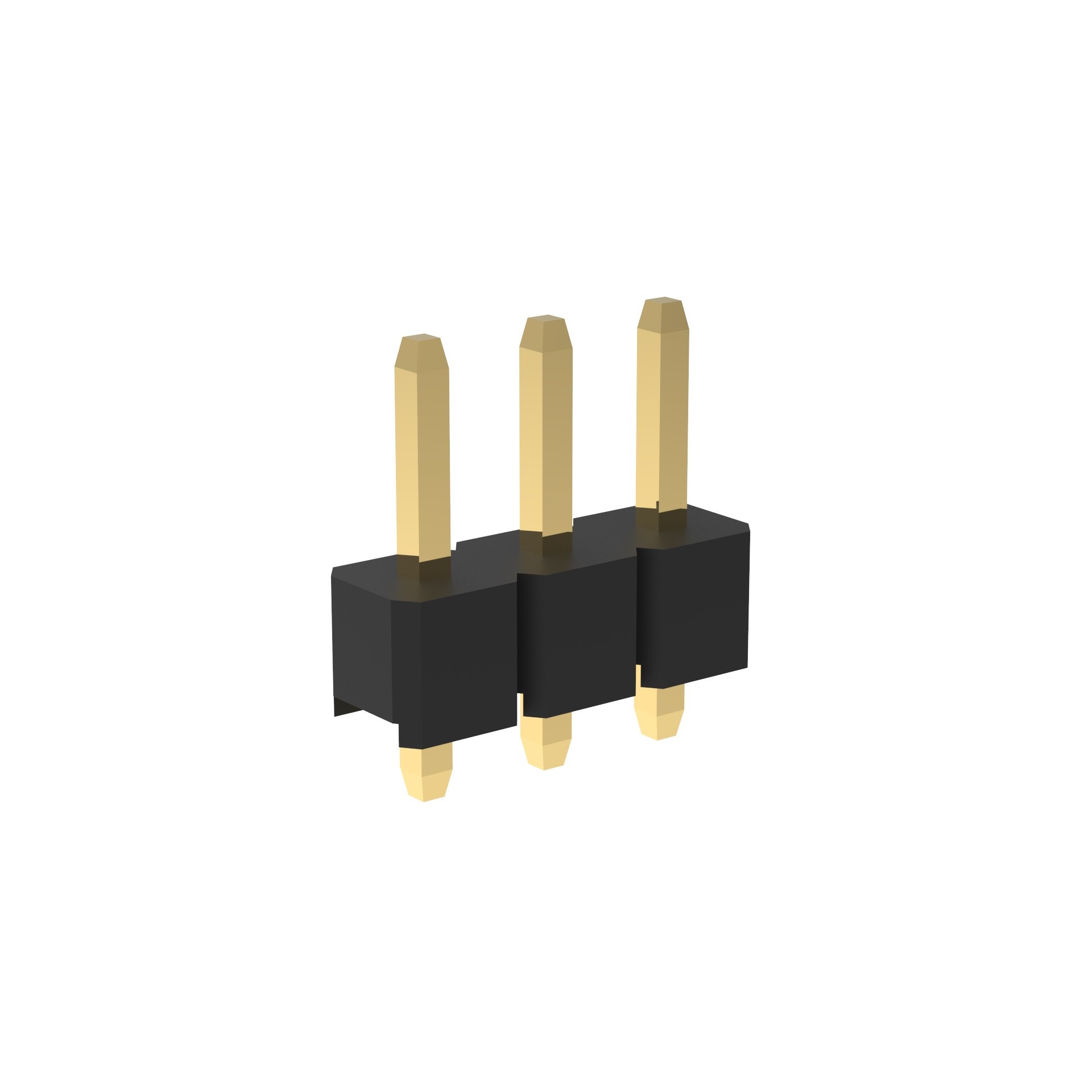

G800LZ305010T1HR
- 型號描述:
-
Connector Header Through Hole 3 position 0.100" (2.54mm)
PIN HEADER 2.54MM PITCH STR DIP,
- 型號:
- G800LZ305010T1HR
- 品牌:
- Amphenol ICC (Commercial Products)
- 交期:
- 5-8工作天
- 原廠包裝量:
- Connector Type
- Header, Cuttable
- Contact Type
- Male Pin
- Pitch - Mating
- 0.100" (2.54mm)
- Number of Positions
- 3
- Number of Rows
- 1
- Row Spacing - Mating
- -
- Number of Positions Loaded
- All
- Style
- Board to Board
- Shrouding
- Unshrouded
- Mounting Type
- Through Hole
- Termination
- Solder
- Fastening Type
- Push-Pull
- Contact Length - Mating
- 0.157" (4.00mm)
- Contact Length - Post
- 0.055" (1.40mm)
- Overall Contact Length
- 0.311" (7.90mm)
- Insulation Height
- 0.098" (2.50mm)
- Contact Shape
- Square
- Contact Finish - Mating
- Gold
- Contact Finish Thickness - Mating
- 30.0µin (0.76µm)
- Contact Finish - Post
- Gold
- Contact Material
- Copper Alloy
- Insulation Material
- Liquid Crystal Polymer (LCP)
- Features
- Pick and Place
- Operating Temperature
- -25°C ~ 105°C
- Ingress Protection
- -
- Material Flammability Rating
- UL94 V-0
- Insulation Color
- Black
- Current Rating (Amps)
- 3A
- Voltage Rating
- 250VDC
