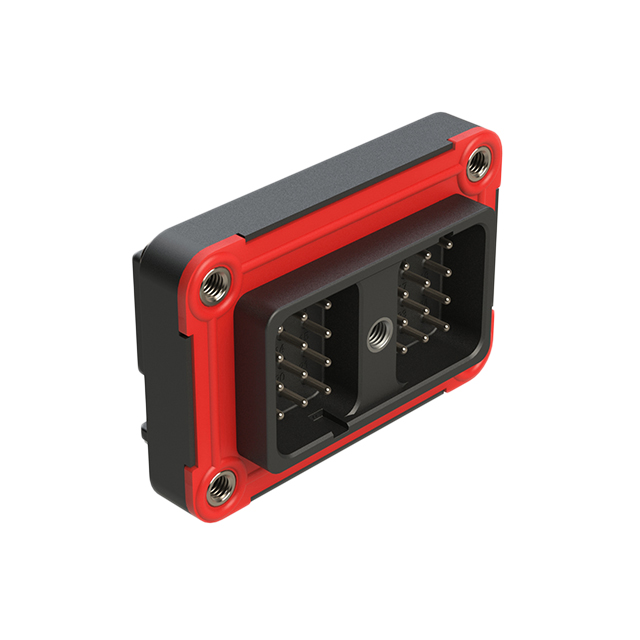

ARC13-24PD-BM03SP1
- 型號描述:
-
Connector Header Panel Mount, Through Hole, Right Angle 24 position 0.216" (5.48mm)
- 型號:
- ARC13-24PD-BM03SP1
- 品牌:
- Amphenol
- 交期:
- 6-9工作天
- 原廠包裝量:
- 1
- 幣別 (NTD)稅前單價/PCS
- 點擊查看即時庫存
| 1+ | NT$1314.9512 |
| 10+ | NT$1165.1287 |
| 40+ | NT$971.4903 |
起訂量：1
倍增量：1
價格:
NT$1314.9512
數量:
合計: NT$1315
- Connector Type
- Receptacle
- Contact Type
- Male Pin
- Pitch - Mating
- 0.216" (5.48mm)
- Number of Positions
- 24
- Number of Rows
- 4
- Row Spacing - Mating
- 0.150" (3.81mm)
- Number of Positions Loaded
- All
- Style
- Board to Cable/Wire
- Shrouding
- Shrouded - 4 Wall
- Mounting Type
- Panel Mount, Through Hole, Right Angle
- Termination
- Solder
- Fastening Type
- Push-Pull
- Contact Length - Mating
- -
- Contact Length - Post
- 0.126" (3.20mm)
- Overall Contact Length
- -
- Insulation Height
- -
- Contact Shape
- Circular
- Contact Finish - Mating
- Nickel
- Contact Finish Thickness - Mating
- -
- Contact Finish - Post
- Tin
- Contact Material
- Copper Alloy
- Insulation Material
- Thermoplastic
- Features
- Mounting Flange, Sealed
- Operating Temperature
- -55°C ~ 125°C
- Ingress Protection
- IP68/IP69K - Dust Tight, Water Resistant, Waterproof
- Material Flammability Rating
- -
- Insulation Color
- Black
- Current Rating (Amps)
- 13A
- Voltage Rating
- 250V
