68023-403HLF
- 型號描述:
-

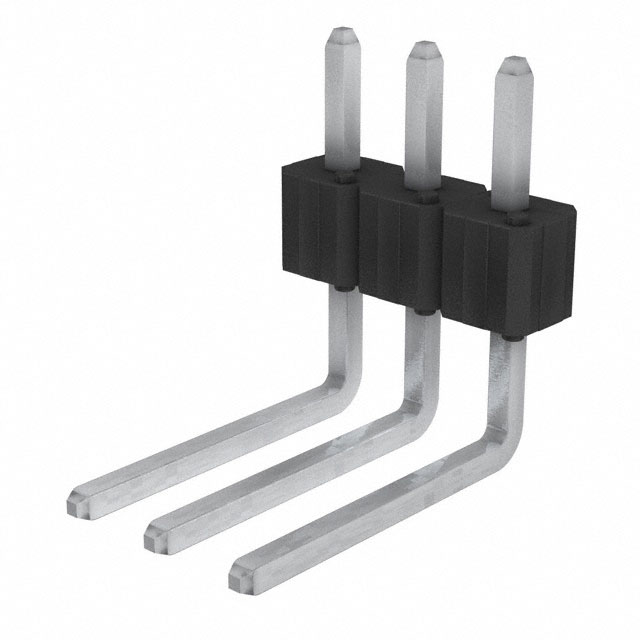

Connector Header Through Hole, Right Angle 3 position 0.100" (2.54mm)
CONN HEADER R/A 3POS 2.54MM
- 型號:
- 68023-403HLF
- 品牌:
- Amphenol ICC (FCI)
- 交期:
- 5-8工作天
- 原廠包裝量:
- Packaging
- Bag
- Features
- -
- Connector Type
- Header
- Voltage Rating
- 110V
- Current Rating (Amps)
- 5A
- Mounting Type
- Through Hole, Right Angle
- Number of Positions
- 3
- Number of Rows
- 1
- Style
- Board to Board
- Operating Temperature
- -
- Contact Type
- Male Pin
- Fastening Type
- Push-Pull
- Number of Positions Loaded
- All
- Termination
- Solder
- Ingress Protection
- -
- Material Flammability Rating
- UL94 V-0
- Contact Material
- Phosphor Bronze
- Insulation Color
- Black
- Pitch - Mating
- 0.100" (2.54mm)
- Contact Finish - Mating
- Tin
- Contact Finish Thickness - Mating
- 100.0µin (2.54µm)
- Contact Finish - Post
- Tin
- Contact Shape
- Square
- Contact Length - Post
- 0.305" (7.75mm)
- Insulation Height
- 0.095" (2.41mm)
- Shrouding
- Unshrouded
- Overall Contact Length
- -
- Insulation Material
- -
- Row Spacing - Mating
- -
- Contact Length - Mating
- 0.136" (3.45mm)
