10157376-02101LF
- 型號描述:
-

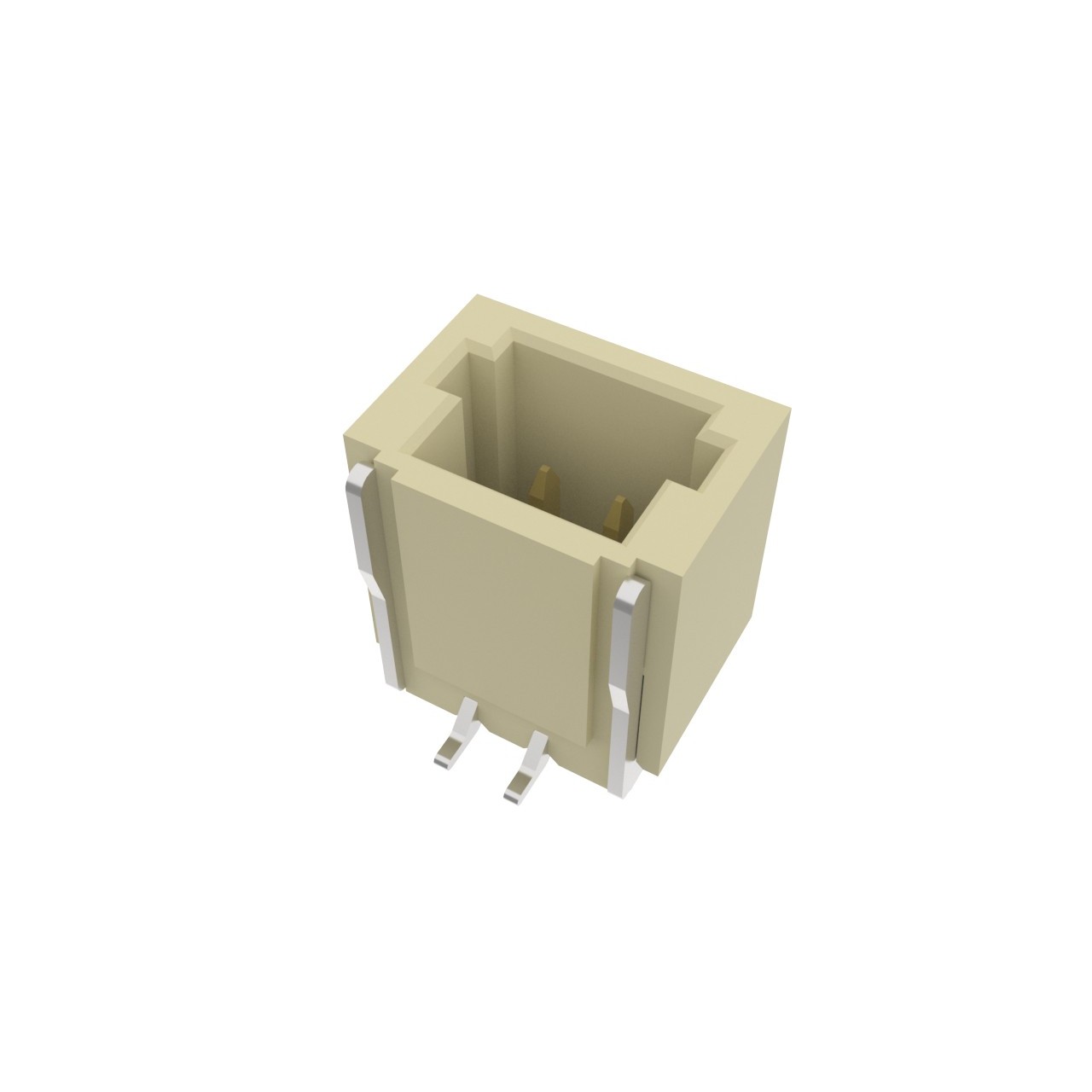

Connector Header Surface Mount 2 position 0.039" (1.00mm)
1.0MM PITCH, HEADER, VER-TICAL,
- 型號:
- 10157376-02101LF
- 品牌:
- Amphenol ICC (FCI)
- 交期:
- 5-8工作天
- 原廠包裝量:
- Connector Type
- Header
- Contact Type
- Male Pin
- Pitch - Mating
- 0.039" (1.00mm)
- Number of Positions
- 2
- Number of Rows
- 1
- Row Spacing - Mating
- -
- Number of Positions Loaded
- All
- Style
- Board to Cable/Wire
- Shrouding
- Shrouded - 4 Wall
- Mounting Type
- Surface Mount
- Termination
- Solder
- Fastening Type
- Push-Pull
- Contact Length - Mating
- -
- Contact Length - Post
- -
- Overall Contact Length
- -
- Insulation Height
- -
- Contact Shape
- Rectangular
- Contact Finish - Mating
- Gold
- Contact Finish Thickness - Mating
- Flash
- Contact Finish - Post
- Gold
- Contact Material
- Phosphor Bronze
- Insulation Material
- Liquid Crystal Polymer (LCP), Halogen Free
- Features
- Pick and Place, Solder Retention
- Operating Temperature
- -25°C ~ 85°C
- Ingress Protection
- -
- Material Flammability Rating
- UL94 V-0
- Insulation Color
- Natural
- Current Rating (Amps)
- 1A
- Voltage Rating
- 50VAC/DC
