10155242-12111LF
- 型號描述:
-

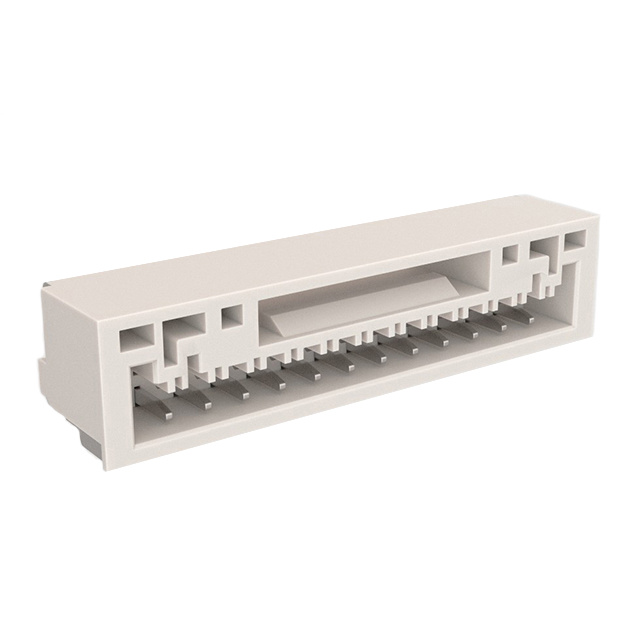

Connector Header Surface Mount, Right Angle 12 position 0.049" (1.25mm)
10155242-12111LF-WF 1.25MM 90 HF
- 型號:
- 10155242-12111LF
- 品牌:
- Amphenol ICC (FCI)
- 交期:
- 5-8工作天
- 原廠包裝量:
- Connector Type
- Header
- Contact Type
- Male Pin
- Pitch - Mating
- 0.049" (1.25mm)
- Number of Positions
- 12
- Number of Rows
- 1
- Row Spacing - Mating
- -
- Number of Positions Loaded
- All
- Style
- Board to Cable/Wire
- Shrouding
- Shrouded - 4 Wall
- Mounting Type
- Surface Mount, Right Angle
- Termination
- Solder
- Fastening Type
- Locking Ramp
- Contact Length - Mating
- -
- Contact Length - Post
- -
- Overall Contact Length
- -
- Insulation Height
- 0.171" (4.35mm)
- Contact Shape
- -
- Contact Finish - Mating
- Tin
- Contact Finish Thickness - Mating
- -
- Contact Finish - Post
- -
- Contact Material
- Phosphor Bronze
- Insulation Material
- Thermoplastic
- Features
- Solder Retention
- Operating Temperature
- -45°C ~ 105°C
- Ingress Protection
- -
- Material Flammability Rating
- UL94 V-0
- Insulation Color
- Natural
- Current Rating (Amps)
- 1A
- Voltage Rating
- 50VAC/DC
