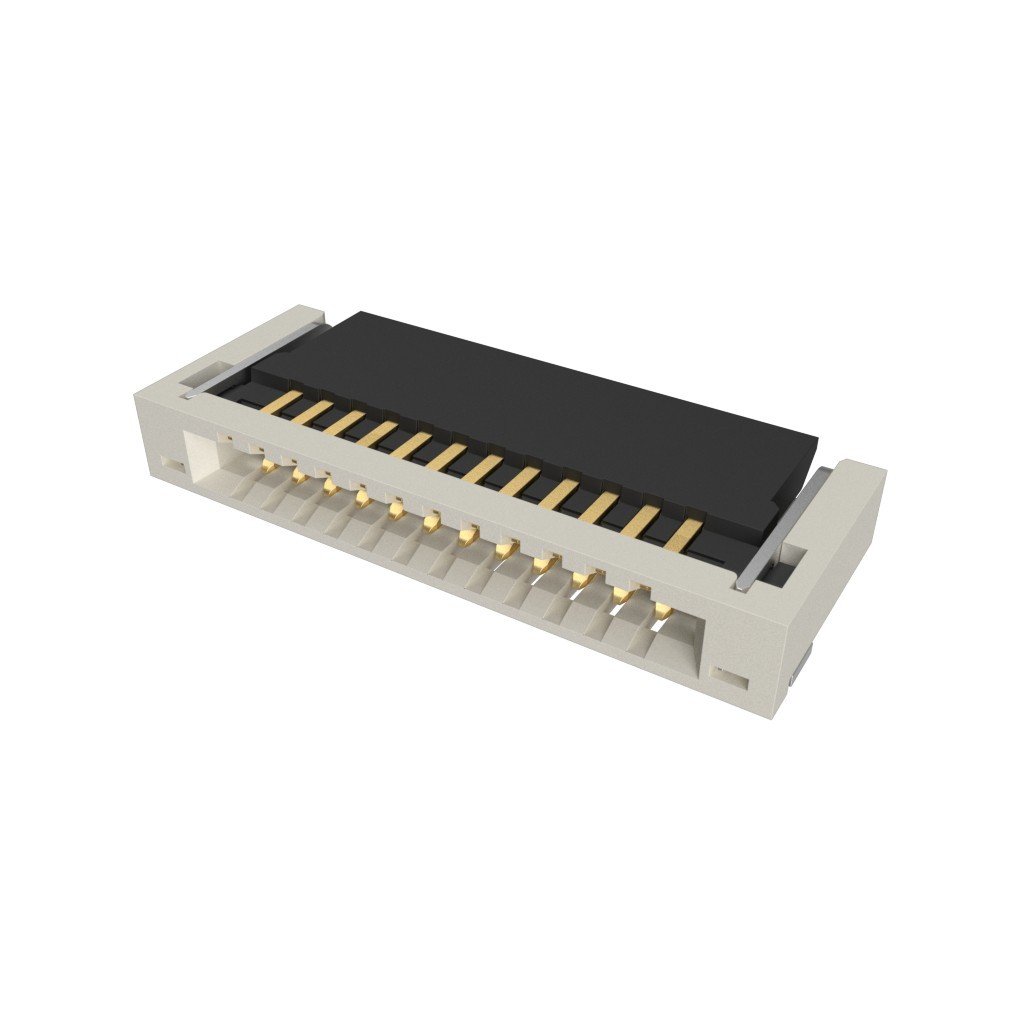

10051922-1210ELF
- 型號描述:
-
12 Position FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
CONN FPC BOTTOM 12POS 0.5MM R/A
- 型號:
- 10051922-1210ELF
- 品牌:
- Amphenol ICC (FCI)
- 交期:
- 5-8工作天
- 原廠包裝量:
- 幣別 (NTD)稅前單價/PCS
- 點擊查看即時庫存
| 4500+ | NT$8.6089 |
| 9000+ | NT$8.1979 |
| 13500+ | NT$7.9669 |
| 22500+ | NT$7.6851 |
| 31500+ | NT$7.505 |
| 45000+ | NT$7.3187 |
起訂量：4500
倍增量：1
價格:
NT$8.6089
數量:
合計: NT$38740
- Packaging
- Tape & Reel (TR)
- Features
- Solder Retention, Zero Insertion Force (ZIF)
- Contact Finish
- Gold
- Voltage Rating
- 50V
- Mounting Type
- Surface Mount, Right Angle
- Number of Positions
- 12
- Pitch
- 0.020" (0.50mm)
- Operating Temperature
- -55°C ~ 85°C
- Termination
- Solder
- Height Above Board
- 0.051" (1.30mm)
- Locking Feature
- Slide Lock
- Material Flammability Rating
- UL94 V-0
- Actuator Material
- Polyamide (PA9T), Nylon 9T, Glass Filled
- Contact Material
- Copper Alloy
- FFC, FCB Thickness
- 0.30mm
- Housing Material
- Liquid Crystal Polymer (LCP), Glass Filled
- Cable End Type
- Straight
- Flat Flex Type
- FPC
- Connector/Contact Type
- Contacts, Bottom
