50308-0050N-002
- 型號描述:
-

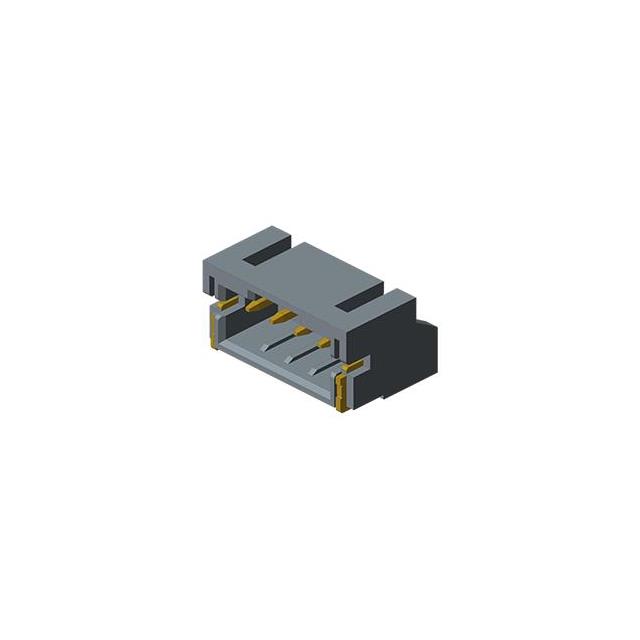

Connector Header Surface Mount, Right Angle 5 position 0.079" (2.00mm)
5P, 2.0MM PITCH WTB WAFER CONN.
- 型號:
- 50308-0050N-002
- 品牌:
- Aces Connectors
- 交期:
- 5-8工作天
- 原廠包裝量:
- 幣別 (NTD)稅前單價/PCS
- 點擊查看即時庫存
| 1+ | NT$8.5904 |
| 10+ | NT$7.2027 |
| 100+ | NT$6.119 |
起訂量：1
倍增量：1
價格:
NT$8.5904
數量:
合計: NT$9
- Packaging
- Tape & Reel (TR)
- Features
- Solder Retention
- Connector Type
- Header
- Voltage Rating
- 200VAC
- Current Rating (Amps)
- 3A
- Mounting Type
- Surface Mount, Right Angle
- Number of Positions
- 5
- Number of Rows
- 1
- Style
- Board to Cable/Wire
- Operating Temperature
- -40°C ~ 85°C
- Contact Type
- Male Pin
- Fastening Type
- Detent Lock
- Number of Positions Loaded
- All
- Termination
- Solder
- Ingress Protection
- -
- Material Flammability Rating
- UL94 V-0
- Contact Material
- Copper Alloy
- Insulation Color
- Black
- Pitch - Mating
- 0.079" (2.00mm)
- Contact Finish - Mating
- Tin
- Contact Finish Thickness - Mating
- -
- Contact Finish - Post
- Tin
- Contact Shape
- Square
- Contact Length - Post
- -
- Insulation Height
- 0.228" (5.80mm)
- Shrouding
- Shrouded - 4 Wall
- Overall Contact Length
- -
- Insulation Material
- Plastic, Halogen Free
- Row Spacing - Mating
- -
- Contact Length - Mating
- -
