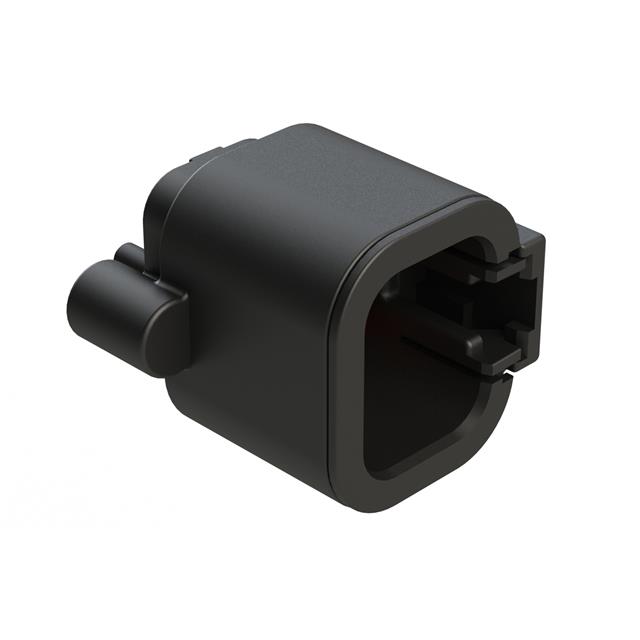

ATP04-4P-BM12
- 型號描述:
-
Connector Header Through Hole 4 position 0.264" (6.71mm)
- 型號:
- ATP04-4P-BM12
- 品牌:
- AMPHENOL SINE/TUCHEL
- 交期:
- 7-12工作天
- 原廠包裝量:
- 1
- 幣別 (NTD)稅前單價/PCS
- 點擊查看即時庫存
| 1+ | NT$467.7314 |
| 10+ | NT$397.4686 |
| 25+ | NT$372.5588 |
| 50+ | NT$354.807 |
| 225+ | NT$319.0743 |
| 450+ | NT$303.8421 |
| 675+ | NT$295.3098 |
| 1125+ | NT$290.4424 |
起訂量：1
倍增量：1
價格:
NT$467.7314
數量:
合計: NT$468
- Packaging
- Box
- Features
- Board Guide, Potting Wall, Sealed
- Connector Type
- Receptacle
- Voltage Rating
- -
- Current Rating (Amps)
- 25A
- Mounting Type
- Through Hole
- Number of Positions
- 4
- Number of Rows
- 2
- Style
- Board to Cable/Wire
- Operating Temperature
- -55°C ~ 125°C
- Contact Type
- Male Pin
- Fastening Type
- Latch Holder
- Number of Positions Loaded
- All
- Termination
- Solder
- Ingress Protection
- IP68/IP69K - Dust Tight, Water Resistant, Waterproof
- Material Flammability Rating
- -
- Contact Material
- Copper Alloy
- Insulation Color
- Black
- Pitch - Mating
- 0.264" (6.71mm)
- Contact Finish - Mating
- Gold
- Contact Finish Thickness - Mating
- -
- Contact Finish - Post
- Gold
- Contact Shape
- Circular
- Contact Length - Post
- 0.146" (3.70mm)
- Insulation Height
- 1.126" (28.60mm)
- Shrouding
- Shrouded - 4 Wall
- Overall Contact Length
- -
- Insulation Material
- Thermoplastic
- Row Spacing - Mating
- 0.400" (10.16mm)
- Contact Length - Mating
- -
